WCAP-7X

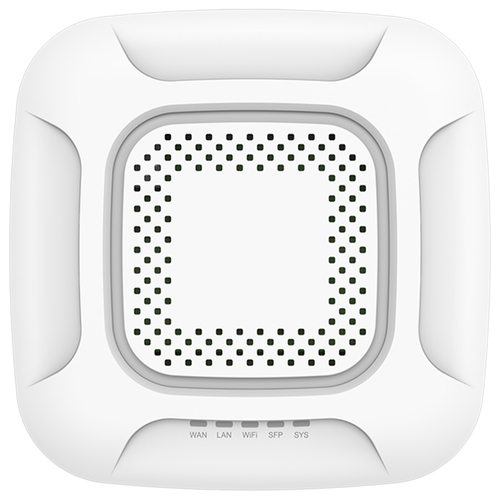

The SIL WCAP-7X is a compact ceiling access point that offers robust performance in an elegant design.
The SIL WCAP-7X is a compact ceiling access point from SilverNet’s Intelligent Wi-Fi 7 “Aero” range, built for high-performance enterprise Wi-Fi with tri-band throughput up to 9794 Mbit/s combined across 2.4, 5 and 6GHz. It runs on 48V PoE or 12V DC, manages locally or from the cloud, and supports guest hotspot authentication (vouchers, local accounts, or social logins) for retail, hospitality and education deployments. A 5GHz priority feature keeps performance up under load, and it carries a 1 year extended warranty.
Antenna
- Antenna type: Internal
- Antenna direction type: Omni-directional
- Antenna features: Integrated antenna
- Antenna gain level (max): 4 dBi
- Polarization: Dual polarization
Ports & interfaces
- WAN connection: Ethernet (RJ-45)
- Ethernet LAN (RJ-45) ports: 1
Security
- Security algorithms: WPA2, WPA3
- Service Set Identifier (SSID) features: Multiple SSIDs
- Number of SSID supported: 8
Design
- Placement: Ceiling, Wall
- Product colour: White
- Housing material: Plastic
- LED indicators: LAN, Power, WAN
Features
- Maximum data transfer rate: 9794 Mbit/s
- Maximum data transfer rate (2.4 GHz): 1148 Mbit/s
- Maximum data transfer rate (5 GHz): 2882 Mbit/s
- Maximum data transfer rate (6 GHz): 5764 Mbit/s
- Ethernet LAN data rates: 10, 100, 1000, 10000 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
- MIMO type: Multi User MIMO
- Number of users: 384 user(s)
- Fit AP mode features: 802.11k & 802.11v smart roaming
- WLAN channel features: WLAN channel management
- Maximum indoor range: 200 m
- Transmitting power (CE): 20 dBm
Performance
- Flash memory: 128 MB
- Internal memory: 1024 MB
Power
- Power consumption (max): 15.4 W
Certificates
- Certification: CE, RoHS
Operational conditions
- Operating temperature (T-T): -10 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage temperature (T-T): -40 - 70 °C
Weight & dimensions
- Width: 208 mm
- Depth: 46 mm
- Height: 208 mm
- Weight: 550 g
Packaging content
- Quantity per pack: 1 pc(s)
Warranty
- Warranty period: 2 year(s)
