WCAP-AX

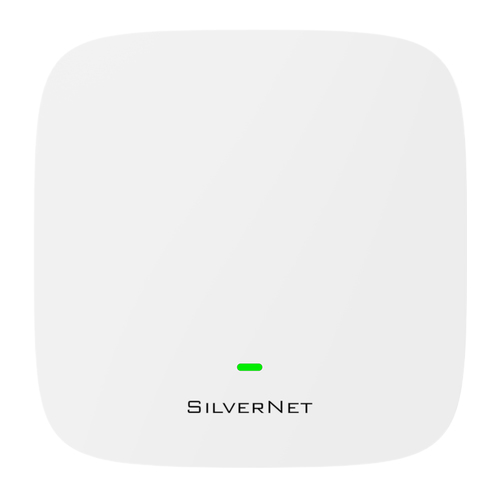

The SIL WCAP-AX is a compact ceiling access point that offers robust performance in an elegant shell.
The SIL WCAP-AX is a compact ceiling access point from SilverNet’s Intelligent Wi-Fi 6 “Aero” range, offering up to 1800 Mbit/s of throughput and support for up to 100 concurrent users. It runs on 48V PoE or 12V DC, manages locally or from the cloud, and supports guest hotspot authentication (vouchers, local accounts, or social logins) for retail, hospitality and education deployments. A 5GHz priority feature keeps performance up under load, and it carries a 1 year extended warranty.
Antenna
- Antenna type: Internal
- Antenna direction type: Omni-directional
- Antenna features: Integrated antenna
- Antenna gain level (max): 4 dBi
- Polarization: Dual polarization
Ports & interfaces
- WAN connection: Ethernet (RJ-45)
- Ethernet LAN (RJ-45) ports: 1
Security
- Security algorithms: WEP, WPA, WPA-AES, WPA-Enterprise, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP
- Service Set Identifier (SSID) features: Multiple SSIDs
- Number of SSID supported: 8
Design
- Placement: Ceiling, Wall
- Product colour: White
- Housing material: Plastic
- LED indicators: LAN, Power, WAN
Features
- Maximum data transfer rate: 1800 Mbit/s
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3af
- Cabling technology: 10/100/1000Base-T(X)
- MIMO type: Multi User MIMO
- Number of users: 100 user(s)
- Modulation: 256-QAM
- Fit AP mode features: 802.11k & 802.11v smart roaming, AC unified management & maintenance
- WLAN channel features: WLAN channel management
- Maximum indoor range: 200 m
- Transmitting power (CE): 20 dBm
Performance
- Processor manufacturer: MediaTek
- Flash memory: 16 MB
- Internal memory: 128 MB
Power
- Output voltage: 48 V
- Power consumption (max): 15 W
Certificates
- Certification: CE, RoHS
Operational conditions
- Operating temperature (T-T): -30 - 60 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage temperature (T-T): -40 - 70 °C
Weight & dimensions
- Width: 168 mm
- Depth: 168 mm
- Height: 32 mm
- Weight: 430 g
Packaging content
- Quantity per pack: 1 pc(s)
Warranty
- Warranty period: 2 year(s)
