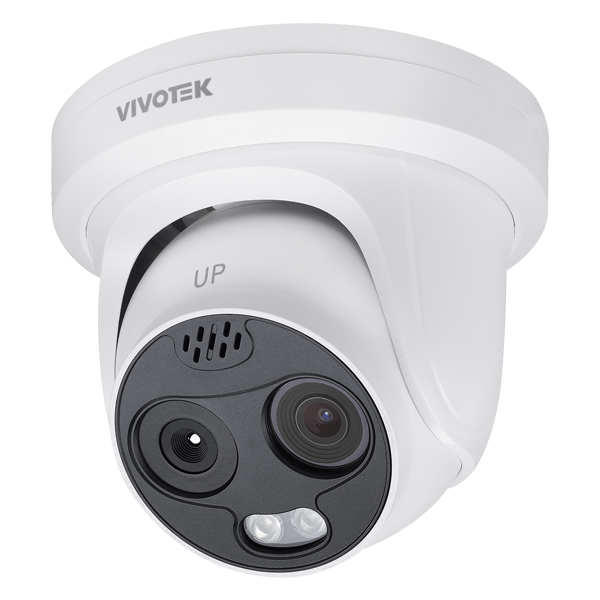

TT9333-E (7 mm)
The TT9333-E (7 mm) is a thermal turret network camera.
The TT9333-E (7 mm) uses thermal imaging rather than visible light, detecting heat signatures in total darkness, smoke or fog where a conventional lens loses visibility. Elevate your security with our thermal camera’s VCA system, featuring Object Classification that distinguishes between humans and vehicles.
- Max. Resolution: Thermal lens: 256x192 (image scale up to 704x576) / Optical lens: 2560x1440
- Lens: Fixed-focal (Thermal lens); Fixed-focal (optical lens), Thermal lens: f = 7 mm; Optical lens: f = 8 mm
- Illuminators: Built-in IR Illuminator up to 50 metres; White light for strobe light warning
- Ingress Rating: IP66
- Compression: H.265, H.264, MJPEG
- Frame Rate: Thermal: 25 fps @ 704x576; 25 fps @ 2560x1440
- ONVIF: Profile G, S, T supported, specification available at www.onvif.org
- Audio: Two-way Audio
- Storage: MicroSD/SDHC/SDXC card slot (256GB capacity supported)
- Video Analytics: Temperature measurement alarms (difference, threshold, section, rise); Early Fire Detection (Fire spot detection, Smoking detection, Smoke & flame detection); VCA (Intrusion, Single line crossing, Double line crossing, Loitering, Wrong way, Enter, Leave); Support VCA alarms triggering by person, car, person or car; Support temperature alarms triggering by ignoring person, car, person or car
