LITE G5

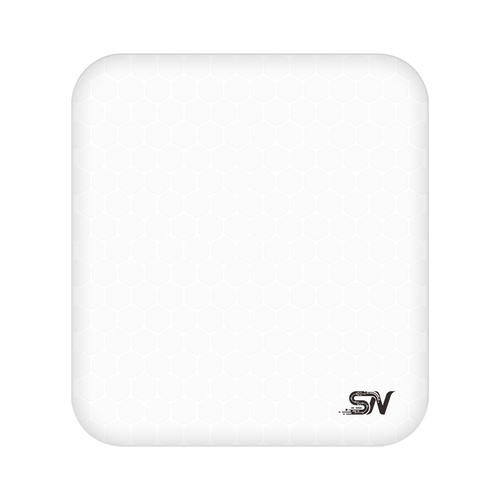

The SIL-LITE Gen 5 is a compact, high-efficiency client radio designed for long-range operation within Point-to-Multipoint (PtMP) networks.
The SIL-LITE Gen 5 is a compact, high-efficiency client radio designed for long-range operation within Point-to-Multipoint (PtMP) networks. Delivering full-duplex throughput of up to 2.5 Gbps of usable bandwidth in each direction, it provides exceptional performance for remote buildings, CCTV networks, rural deployments, and edge-of-network devices that require fast, stable, and secure connectivity. Operating across a wide 5.125-6.425 GHz frequency range, the SIL-LITE offers excellent deployment flexibility in both low-noise and high-density environments. With its integrated dual-polarised 20 dBi antenna, it supports long-range links of up to 6 km when paired with a suitable PRO G5 base station. Connectivity is versatile and installer-friendly, featuring 1 × RJ45, 1 × SFP+, and 1 × DC input (9-56 V), ensuring compatibility with a wide range of network and power configurations. The unit also includes AES+ 256 SAE security, WEB-based management, and PoE, making installation straightforward and secure. Advanced features such as TDMA, a built-in spectrum analyser, and an integrated throughput tester help maintain reliable performance even in congested multipoint environments. As part of the SilverNet PRO G5 Range, the SIL-LITE integrates seamlessly with PRO G5 base stations equipped with Omni or Sector antennas, the antenna types used for multipoint access in the PRO Range. This ensures wide-area coverage from the base station while the SIL-LITE operates as a long-range subscriber unit, delivering strong, stable connectivity at the client end. When paired with SilverView, SilverNet’s FREE network monitoring and management software, the SIL-LITE becomes a powerful, easy-to-manage client solution that simplifies installation, monitoring, and long-term maintenance. The SIL-LITE Gen 5 includes a 2-year parts and labour warranty, extendable to 5 years for enhanced long-term protection.
Data transmission
- Maximum data transfer rate: 2500 Mbit/s
- Maximum transfer distance: 6000 m
Antenna
- Antenna design: Internal
- Antenna type: 2x2
- Antenna gain level (max): 20 dBi
- Antennas quantity: 1
Wireless LAN features
- Wi-Fi band: Single-band (5 GHz)
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- WLAN data transfer rate (max): 2500 Mbit/s
- Frequency band: 5.150 - 6.425 GHz
- Transmission gain: 0 - 20 dB
- Output power (dBm): 26
- Outdoor range: 6000
Network
- Ethernet LAN interface type: 2.5 Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000, 2500 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11be, IEEE 802.11n
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- Power over Ethernet plus (PoE+) ports quantity: 1
Security
- Security algorithms: 256-bit AES, SNMPv2, SNMPv3, SSH
Features
- Product type: Network bridge
- Mounting type: Wall/Pole
- Product colour: White
- LED indicators: LAN, Power, Signal strength
Features
- International Protection (IP) code: IP67
- Mean time between failures (MTBF): 60000 h
Power
- Power source type: DC, PoE
- AC input voltage: 100-240 V
- Power supply: 15.4 W
- DC input voltage: 9-56 V
- Power consumption (typical): 6 W
- Power consumption (max): 16 W
- Power over Ethernet (PoE) voltage: 48 V
- Power plug type: Type G
Operational conditions
- Operating temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage temperature (T-T): -40 - 80 °C
Certificates
- Certification: CE, FCC
Weight & dimensions
- Width: 223 mm
- Depth: 63 mm
- Height: 245 mm
- Weight: 1.17 kg
Packaging content
- Packaging content: Includes 1 x radio, 1 x PoE injector PSU and 1 x Tilt and Swivel 3 Axis mounting bracket.
Other features
- Warranty period: 2 year(s)
