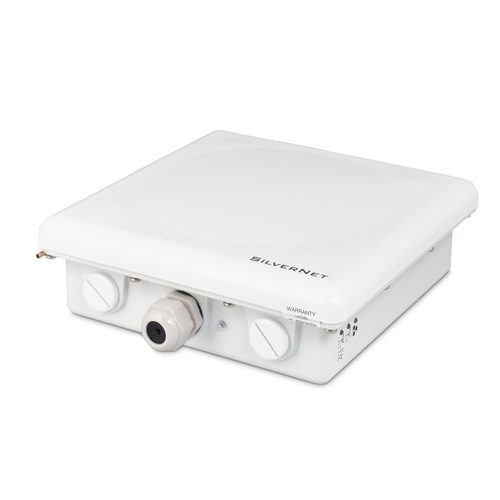

LITE G4
The SIL LITE is a single radio offering up to 100Mbps at distances up to 6km.
The SIL LITE is a single radio offering up to 100Mbps at distances up to 6km. It can be used in a Point to Point or Point to MultiPoint system. The SIL LITE is a highly dependable radio that, due to being enclosed within a metal shell, offers enhanced protection from external electromagnetic interference and other environmental factors, such as lightening strikes and power surges. The SIL LITE is designed for long range wireless links and proven to operate in extremely harsh conditions. The SIL LITE uses the highly secure 256 AES encryption method for data transmission and has a built in dual-polarised 18dBi antenna. It is available in 100Mbps, 240Mbps or 500Mbps Full Duplex versions. This radio is part of the SilverNet PRO Range. The PRO Range is a family of class leading, wireless outdoor bridge solutions that have been optimised for long transmission distances and designed to be extremely compact and rugged. The PRO Range will save money, while servicing the need to construct a solid and reliable wireless system replacing the requirement for expensive lease lines. Couple that with the FREE SilverView network monitoring software and you have an outstanding feature packed solution.
Data transmission
- Maximum data transfer rate: 100 Mbit/s
- Maximum transfer distance: 6000 m
- Supported data transfer rates: 100, 240, 500Mbps
Antenna
- Antenna design: Internal
- Antenna gain level (max): 18 dBi
- Pan/tilt-axis range: 180°
- Antennas quantity: 1
Wireless LAN features
- Wi-Fi band: Single-band (5 GHz)
- Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
- WLAN data transfer rate (max): 1300 Mbit/s
- Frequency band: 5.1 - 5.8 GHz
- Transmission gain: 0 - 18 dB
- Signal strength: -40 dBm
- Channels quantity: 25 channels
- Modulation: 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
- Receiver sensitivity: -82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps
- Output power (dBm): 26
- Indoor range: 6000m
- Outdoor range: 6000m
Network
- Ethernet LAN interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x
- Cabling technology: 10/100/1000Base-T(X)
Ports & interfaces
- Connectivity technology: Wired & Wireless
- Ethernet LAN (RJ-45) ports: 1
Security
- Security algorithms: 256-bit AES, 802.1x RADIUS, SNMPv2, SSH
- Authentication method: WPA2 AES
Management features
- Management protocols: SNMP V2
Features
- Product type: Network bridge
- Product colour: White
- LED indicators: LAN, Signal strength
Features
- International Protection (IP) code: IP67
- Mean time between failures (MTBF): 60000 h
Power
- Power source type: DC, PoE
- AC input voltage: 100-240 V
- Power supply: 15.4 W
- DC input voltage: 24-48/48-56 V
- Power consumption (typical): 6 W
- Power consumption (max): 16 W
- Power over Ethernet (PoE) voltage: 48 V
- Power plug type: Type G
Operational conditions
- Operating temperature (T-T): -20 - 70 °C
- Operating temperature (T-T): -4 - 158 °F
- Operating relative humidity (H-H): 0 - 95%
- Storage temperature (T-T): -40 - 90 °C
- Storage relative humidity (H-H): 0 - 95%
Certificates
- Certification: CE, FCC
Weight & dimensions
- Antenna diameter: 30 cm
- Width: 215 mm
- Depth: 215 mm
- Height: 77 mm
- Weight: 1.6 kg
Packaging content
- Packaging content: Includes 1 x radio, 1 x PoE injector PSU and 1 x Tilt and Swivel 3 Axis mounting bracket.
