MICRO G4
The SIL MICRO is a single 2km radio capable of 100Mbps throughput.

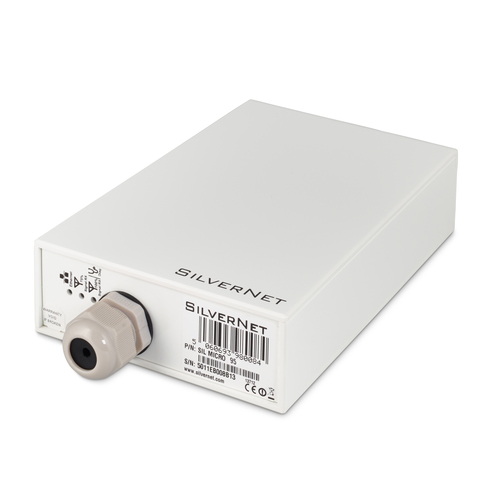

The SIL MICRO is a single 2km radio capable of 100Mbps throughput. It can be used in a Point to Point or Point to MultiPoint system. In 2012 it was nominated for ‘Security Product of the Year’, due to it’s high MTBF and robust design. The MICRO’s small form factor (17.9 x 12 x 4.5 cm) makes it a great street level product. As standard the SIL MICRO comes in White, however, other colours are available on special order.
Data transmission
- Maximum data transfer rate: 100 Mbit/s
- Maximum transfer distance: 2000 m
- Supported data transfer rates: 100, 240, 500Mbps
Antenna
- Antenna design: Internal
- Antenna gain level (max): 14 dBi
- Antennas quantity: 1
Wireless LAN features
- Wi-Fi band: Single-band (5 GHz)
- Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
- WLAN data transfer rate (max): 1300 Mbit/s
- Frequency band: 5.1 - 5.8 GHz
- Transmission gain: 0 - 14 dB
- Signal strength: -40 dBm
- Channels quantity: 25 channels
- Modulation: 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
- Receiver sensitivity: -82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps
- Output power (dBm): 26
- Indoor range: 2000m
- Outdoor range: 2000m
Network
- Ethernet LAN interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af
- Cabling technology: 10/100/1000Base-T(X)
Ports & interfaces
- Connectivity technology: Wired & Wireless
- Ethernet LAN (RJ-45) ports: 1
Security
- Security algorithms: 256-bit AES, 802.1x RADIUS, SNMP, SNMPv2
- Authentication method: WPA2 AES
Management features
- Management protocols: SNMP V2
Features
- Product type: Network bridge
- Product colour: Black, White
- LED indicators: LAN, Signal strength
Features
- International Protection (IP) code: IP66
- Mean time between failures (MTBF): 60000 h
Power
- Power source type: DC, PoE
- AC input voltage: 100-240 V
- Power supply: 15.4 W
- DC input voltage: 24-48/48-56 V
- Power consumption (typical): 6 W
- Power consumption (max): 16 W
- Power over Ethernet (PoE) voltage: 48 V
- Power plug type: Type G
Operational conditions
- Operating temperature (T-T): -20 - 70 °C
- Operating temperature (T-T): -4 - 158 °F
- Operating relative humidity (H-H): 0 - 95%
- Storage temperature (T-T): -40 - 90 °C
- Storage relative humidity (H-H): 0 - 95%
Certificates
- Certification: CE, FCC
Weight & dimensions
- Antenna diameter: 20.5 cm
- Width: 179 mm
- Depth: 120 mm
- Height: 45 mm
- Weight: 500 g
Packaging content
- Packaging content: Includes 1 x radio, 1 x PoE injector PSU and 1 x Tilt and Swivel 3 Axis mounting bracket.
