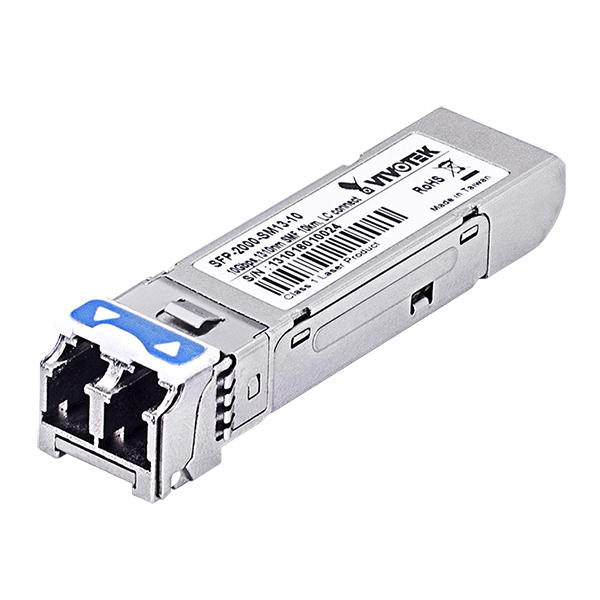

SFP-2000-SM13-10
The SFP-2000-SM13-10 is an SFP transceiver with 10G.
The SFP-2000-SM13-10 pairs a 10G data rate with an LC connector, reaching up to 10km over single-mode fibre.
- Data Rate: 10G
- Wave Length: 1310 nm
- Laser Type: DFB
- Tx (dBm): -8 ~ 0.5 dBm
- RX (dBm): -1 ~ -14.4 dBm
- Voltage: 3.3V
- Transmission Range: 9/125µm, up to 10km
- Fibre Type (MMF / SMF): SMF
- DDM (Digital Diagnostics Monitoring): Yes
- Connector: LC
- Dimensions: 55.9mm (L) x 14.69mm (W) x 12.39mm (H)
- Operating Temperature: 0°C ~ 70°C (32°F ~ 158°F)
- Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F)
- Humidity: 5 ~ 90% (non-condensing)
- MSA Compliant: Yes
- Certifications: IEC 825, EN60825-1, FDA 21 CFR 1040.10 and 1040.11
