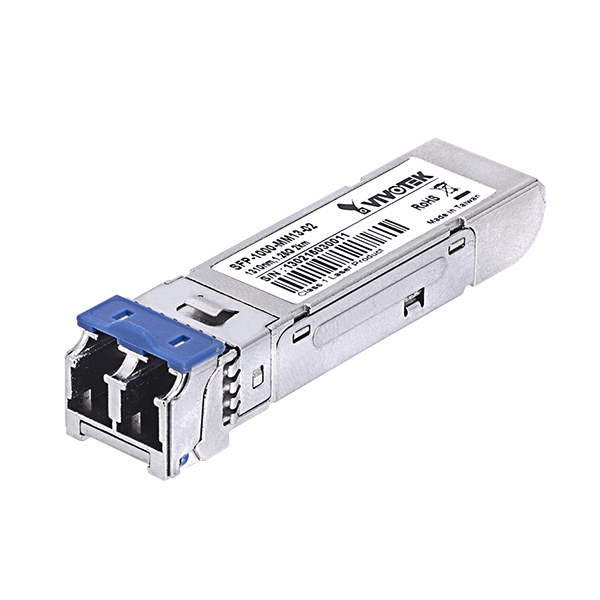

SFP-1000-MM13-02
The SFP-1000-MM13-02 is an SFP transceiver with 1.25G.
The SFP-1000-MM13-02 pairs a 1.25G data rate with an LC connector, reaching up to 2km over multimode fibre.
- Data Rate: 1.25G
- Wave Length: 1300/1310 nm
- Laser Type: Fabry-Perot
- Tx (dBm): -5 ~ -15 dBm
- RX (dBm): -3 ~ -20 dBm
- Voltage: 3.3V
- Transmission Range: 50/125µm, 62.5/125µm, up to 2km
- Fibre Type (MMF / SMF): MMF
- DDM (Digital Diagnostics Monitoring): Yes
- Connector: LC
- Dimensions: 55.9mm (L) x 14.69mm (W) x 12.39mm (H)
- Operating Temperature: 0°C ~ 70°C (32°F ~ 158°F)
- Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F)
- Humidity: 5 ~ 90% (non-condensing)
- MSA Compliant: Yes
- Certifications: IEC 825, EN60825-1, FDA 21 CFR 1040.10 and 1040.11
