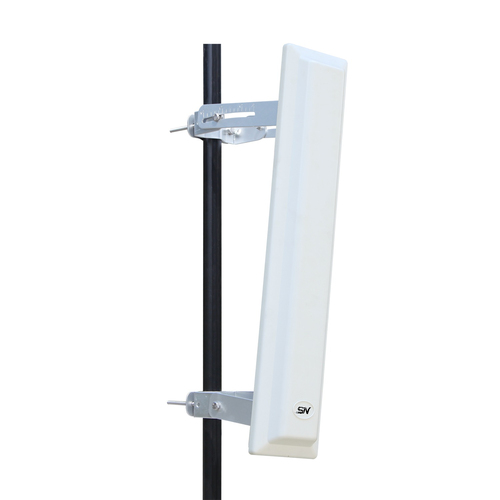

SAN 5819-120
The SIL SAN5819-120 is an outdoor sector antenna with a 120 degree horizontal beam width.
The SIL SAN5819-120 is an outdoor sector antenna with a 120 degree horizontal beam width. It is fully compatible with our Pro Range multipoint receivers. The antenna operates in the 5GHz band. It has 2 x N-type Female connectors. To connect it to one of our multipoint receivers you will need some LMR400 cables. SilverNet offers these cables in 1, 2, 4 and 8 Metre lengths.
Performance
- Frequency band: 4.9 - 5.8 GHz
- Impedance: 50 Ω
- Horizontal beam width: 120°
- Vertical beam width: 4°
- Antenna gain level (max): 19 dBi
Features
- Antenna type: Sector antenna
- Antenna connector type: 2x N-type
- Connector gender: Female
- Polarization: Dual polarization
- Voltage Standing Wave Ratio (VSWR): <2.0
- Product colour: White
- Survival wind speed: 241.4 km/h
- Wind load: 150
- Maximum operating distance: 3000 m
- Mounting: Wall/Pole
- Purpose: Outdoor
Features
- Front to back ratio: 20 dB
Certificates
- Compliance certificates: RoHS
- Certification: CE, RoHS
Operational conditions
- Operating temperature (T-T): -40 - 70 °C
Weight & dimensions
- Width: 140 mm
- Depth: 50 mm
- Height: 700 mm
- Weight: 3 kg
Packaging content
- Quantity per pack: 1 pc(s)
