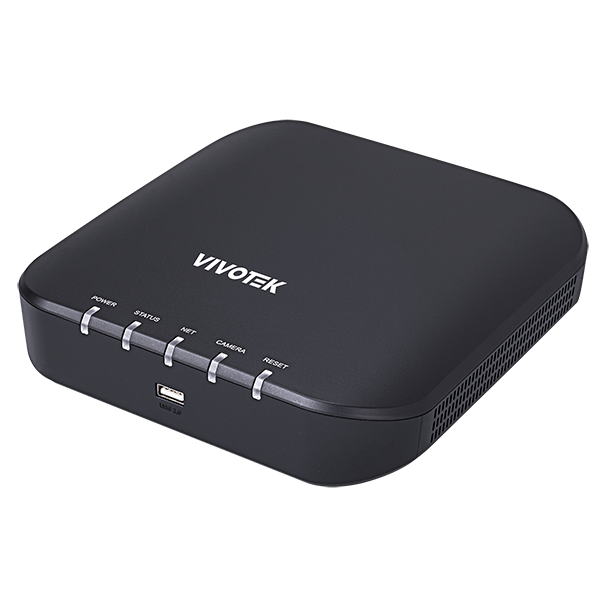

RX9502
The RX9502 is a H.265 32-CH embedded video receiver.
The RX9502 is a H.265 32-CH embedded video receiver. The RX9502 provides various split modes for layout display (1x1, 2x2, 3x3, 4x4, 1M+5, 1M+12, 1M+32, 1P+3, 1P+6, 2P+3, 3V) and supports VIVOTEK’s fisheye camera Fisheye Dewarp function, which provides multiple dewarping modes to ensure the correct angle of video view and detailed information for flexible usage.
- Descriptions: 32-CH Embedded Video Decoder
- OS: Embedded Linux
- Watchdog: Hardware + Software
- Power Restoration: System Restart Automatically after Power Recovery
- LiveView Display: 32 Channels; Multi Layout Display: 1x1, 1M+5, 1M+12, 1M+31, 1P+3, 1P+6, 2x2, 2P+3, 3x3, 3V, 4x4
- Video Output: HDMI x1
- Display Resolution: 3840x2160, 1920x1080, 1280x720
- Stream Application: Constant\Auto Adaptive Stream
- Fisheye Dewarp: 1O, 1P, 1R, 1O3R, 1O8R, 1P3R
- PTZ Operation: Direction Control, Home, Iris, Preset, Patrol (Group)
- Video Format: H.264, H.265, MJPEG
- Graphic Decoder: Hardware decoding
- Decoding Resolution: Up to 7680x2560
- Decoding Capability: 3840x2160 @ 90 fps (3-CH); 1920x1080 @ 360 fps (12-CH)
- Audio Format: G.711, G.726
- Ethernet: 10/100/1000Mbps Ethernet (RJ-45) x1
- Network Throughput in total: 192 Mbps
- Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS
- USB: Front: 1 (USB 2.0); Back: 1 (USB 3.0)
- Camera Integration: ONVIF Profile S
- User Management: User level: administrator, regular user
- Date&Time: Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time
- Language: Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese, Arabic
- Software AP: Shepherd, VAST 2, VSS
- Web Browser: Chrome
- Power Input: DC 12V 1A
- Power Consumption: Max. 11 W
- Dimensions: 200 (D) x 198 (W) x 47 (H) mm
- Weight: 530 g
- Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F)
- Humidity: 0 ~ 95%
- Safety Certifications: CE, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS
