The enterprise-grade PoLRE switch is available in 24 and 48 port configurations (NV-PL-024 / NV-PL-048). The PoLRE single-pair Ethernet switch enables IP and IoT devices up to four times farther than standard Power over Ethernet switches, transforming an existing single-pair UTP infrastructure into a robust IP backbone with power. Now with CCMT for centralised multi-switch management.

PoLRE was designed to make the migration to IP quick, easy and cost effective by leveraging an existing single pair UTP infrastructure. Benefits include:

Accelerating your return on investment by reducing infrastructure costs.
Collapsing planning and deployment time.
Eliminating infrastructure barriers, risks, disruption and costs.
Creating a robust IP platform that is easy to configure, deploy and manage.

Speed, Reach and Power
PoLRE delivers 10 Mbps (symmetrical, full duplex) and PoE over a single pair of UTP with over 1,200 ft (365 m) reach. It is designed to support IP phones and other IEEE compliant devices. No speed degradation with longer reach.

Industry Leading PowerWISE® Technology
Power sharing for redundancy, load balancing, AC/DC options, hot swappable power supply and auto-sensing 100-240 VAC delivering 500 to 1,000 Watts of power. PoLRE is one of the most energy efficient switches on the market, consuming less than 40 Watts of power to operate.

Managed Switch with Plug-and-Play Option
PoLRE can operate in a transparent mode functioning as a bridge, allowing for plug-and-play deployment to a fully managed switch with high value features including:

Power management by port for easy reset of ports.
Port MAC locking for higher security and peace of mind.
Simple Network Manager, an intuitive Web GUI that makes managing the switch a breeze.

Part Numbers: NV-PL-024, NV-PL-048 (NV-PL-024-1X, NV-PL-048-1X)
Dimensions: 19in (48.26cm) x 1U without rack ears; 9.92“ x 17.3“ x 1.75“ (LxWxH)
Weight: 7.94 lb (3.6 kg)
Mounting: Standalone, rack or shelf-mountable; 2 brackets included for installation
Ethernet Uplink: 2 x mini-GBIC (1000 Base-TX/SX/LX/EX/ZX/LHX) or 2 x RJ45 (10/100/1000 Base-T)
Downlink: PoLRE24: 1 x RJ21 telco connector (24 pairs); PoLRE48: 2 x RJ21 telco connectors (48 pairs); up to 1,200ft (365m) over CAT3 UTP, 24 AWG
Management: 1 x LAN port (MGMT) RJ45, 10/100 Base-T; 1 x UART console port (RJ45 to DB9)
Power Supply: Auto-sensing 100-240VAC, 50/60Hz; 500W max at 100VAC, 1,000W max at 240VAC
Power Consumption: PoLRE24 34.5W, PoLRE48 40W
Operating Temperature: 14°F to 122°F (-10°C to 50°C)

Datasheet

Request a Quote

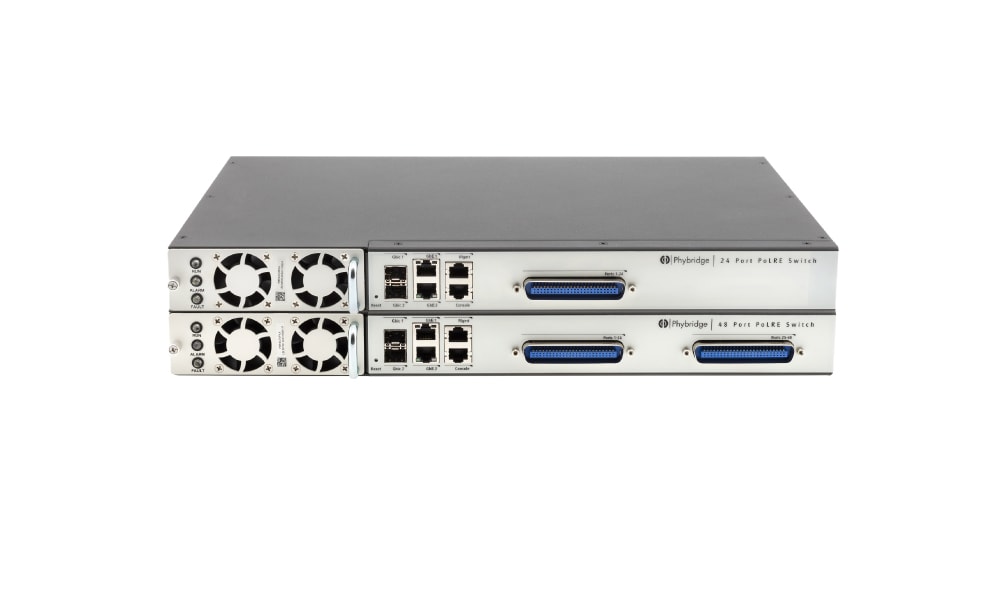

PoLRE24/48
