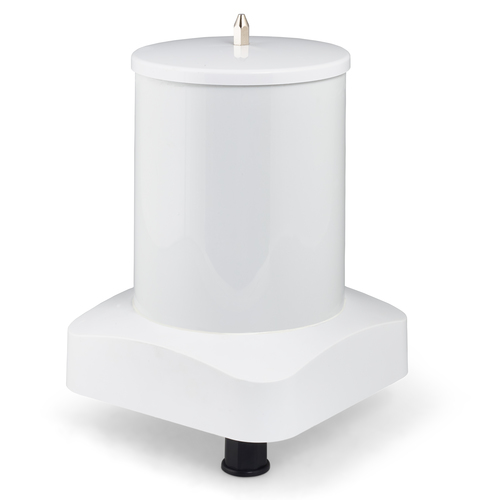

BASE500-360 G4
The SIL BASE 500-360 is a multipoint receiver with built-in 360 degree omni antennas.
The SIL BASE 500-360 is a multipoint receiver with built-in 360 degree omni antennas. Using MIMO spatial multiplexing and its ultrafast radio speed, the BASE 500-360 offers up to 500Mbps full duplex. Works with the MICRO single radio as a remote transmitter at distances up to 1km. The SIL BASE 500-360 is fully integrated with our FREE SilverView network monitoring software ensuring you have an outstanding feature packed solution.
Features
- Maximum data transfer rate: 500 Mbit/s
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Throughput data rate: 867 Mbit/s
- Frequency band: 5.1 - 5.8 GHz
- Bandwidth: 5 GHz
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af
- Cabling technology: 10/100/1000Base-T(X)
- Channels quantity: 25 channels
- Channel bandwidth: 40 MHz
- Control channel mode: Tagged & untagged
- MIMO type: Multi User MIMO
- Modulation: 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
- Fit AP mode features: Mesh networking
- WLAN channel features: WLAN channel management
- Virtual LAN features: IP subnet-based VLAN, Port-based VLAN, Protocol-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID)
- Number of VLAN IDs: 4095
- Maximum indoor range: 1000 m
- Maximum outdoor range: 1000 m
- Transmitting power: 26 dBmW
- Receiver sensitivity: -82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps
Security
- Security algorithms: 256-bit AES, SNMP, SNMPv2, SSH
- Service Set Identifier (SSID) features: Hidden SSID, Multiple SSIDs, SSID broadcast
Management features
- Local AP management: Telnet
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
Power
- AC input voltage: 100 - 240 V
Power
- Output voltage: 24-48, 48-56 V
- Power consumption (typical): 6 W
- Power consumption (max): 16 W
- Power supply: 15.4 W
- Power plug type: Type G
Design
- Placement: Pole
- Product colour: White
- International Protection (IP) code: IP66
- LED indicators: LAN, Signal strength
Antenna
- Antenna type: Internal
- Antenna direction type: Omni-directional
- Antenna features: Integrated antenna
- Antennas quantity: 4
- Antenna gain level (max): 7 dBi
- Antenna connector type: RP-MMCX
- Number of connectors: 2
- Polarization: Dual polarization
Performance
- Compatible operating systems: Microsoft Windows, Mac OS, Linux Distributions
- Minimum system requirements: Internet Explorer, Google Chrome, Mozilla Firefox
Certificates
- Certification: CE, FCC
Weight & dimensions
- Width: 240 mm
- Depth: 240 mm
- Height: 300 mm
- Weight: 2.5 kg
Packaging content
- Quantity per pack: 1 pc(s)
- Packaging content: Includes 1 x radio, 1 x PoE injector PSU and 1 x Tilt and Swivel 3 Axis mounting bracket.
- Bundled software: SilverView Pro Network Management & Monitoring Software
Operational conditions
- Operating relative humidity (H-H): 0 - 95%
- Operating temperature (T-T): -20 - 70 °C
- Storage temperature (T-T): -40 - 90 °C
- Storage relative humidity (H-H): 0 - 95%
