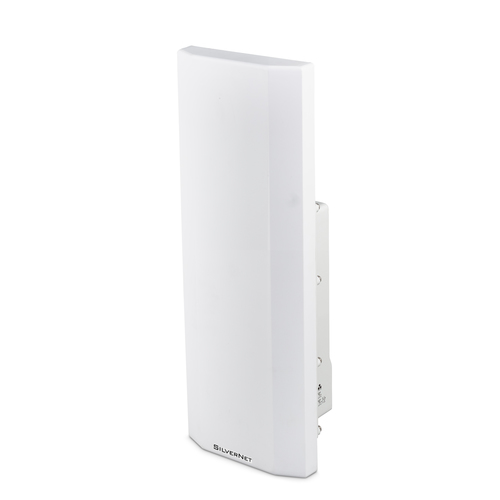

BASE500-90 G3/4
The BASE 500 90 is a highly secure long range Multipoint transmission system with a built in 90 degree sector antenna.
The BASE 500 90 is a highly secure long range Multipoint transmission system with a built in 90 degree sector antenna. Enhanced features include MIMO spatial multiplexing and ultrafast radio speed, giving the BASE 500 90 unparalleled data throughput capabilities, available 500Mbps full duplex. Works with the MICRO Single radio as a remote transmitter. The PRO Range is class leading, offering a wireless outdoor bridge that has been optimised for long transmission distances which has been designed to be extremely compact and rugged. Our FREE SilverView network monitoring software built in as standard ensures you have an outstanding feature packed solution.
Data transmission
- Maximum data transfer rate: 500 Mbit/s
- Maximum transfer distance: 6000 m
- Supported data transfer rates: 500Mbps
Antenna
- Antenna design: Internal
- Antenna gain level (max): 13 dBi
- Pan/tilt-axis range: 180°
- Antennas quantity: 1
Wireless LAN features
- Wi-Fi band: Single-band (5 GHz)
- Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
- WLAN data transfer rate (max): 867 Mbit/s
- Frequency band: 5.1 - 5.8 GHz
- Transmission gain: 0 - 13 dB
- Signal strength: -40 dBm
- Channels quantity: 25 channels
- Modulation: 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
- Receiver sensitivity: -82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps
- Output power (dBm): 26
- Indoor range: 6000m
- Outdoor range: 6000m
Network
- Ethernet LAN interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af
- Cabling technology: 10/100/1000Base-T(X)
Ports & interfaces
- Connectivity technology: Wired & Wireless
- Ethernet LAN (RJ-45) ports: 1
Security
- Security algorithms: 256-bit AES, SNMP, SNMPv2, SSH
- Security features: 802.1x, 802.11i, 802.1Q
- Authentication method: WPA2 AES
Management features
- Management platform: SNMP V2
Features
- Product type: Network bridge
- Product colour: White
- LED indicators: LAN, Signal strength
Features
- International Protection (IP) code: IP67
- Mean time between failures (MTBF): 60000 h
Power
- Power source type: PoE
- AC input voltage: 100-240 V
- Power supply: 15.4 W
- DC input voltage: 24 - 48 V
- Power consumption (typical): 6 W
- Power consumption (max): 16 W
- Power over Ethernet (PoE) voltage: 48 V
- Power plug type: Type G
Operational conditions
- Operating temperature (T-T): -20 - 70 °C
- Operating temperature (T-T): -4 - 158 °F
- Operating relative humidity (H-H): 0 - 95%
- Storage temperature (T-T): -40 - 90 °C
- Storage relative humidity (H-H): 0 - 95%
Certificates
- Certification: CE, FCC
Weight & dimensions
- Antenna diameter: 48 cm
- Width: 450 mm
- Depth: 170 mm
- Height: 65 mm
- Weight: 2.3 kg
Packaging content
- Packaging content: Includes 1 x radio, 1 x PoE injector PSU and 1 x Tilt and Swivel 3 Axis mounting bracket.
