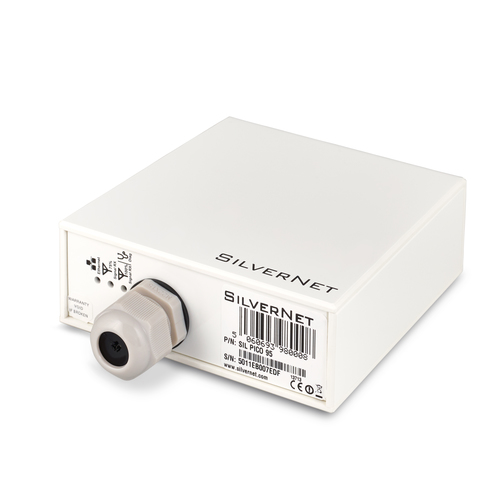

PICO 95-PCP G3
SilverNet PICO 95-PCP G3: a paired point-to-point kit for a compact, low-cost outdoor wireless bridge link at up to 95 Mbit/s over 1km.
The PICO 95-PCP G3 is an earlier paired point to point kit in the same compact PICO body, running at 95 Mbit/s rather than the 100 Mbit/s of the newer G4 generation. It keeps the same integrated 12dBi antenna and free SilverView monitoring software, at a lower cost for links that don’t need the extra throughput.
Data transmission
- Maximum data transfer rate: 95 Mbit/s
- Maximum transfer distance: 1000 m
- Supported data transfer rates: 95 Mbit/s
Antenna
- Antenna design: Internal
- Antenna gain level (max): 12 dBi
- Pan/tilt-axis range: 180°
- Antennas quantity: 1
Wireless LAN features
- Wi-Fi band: Single-band (5 GHz)
- Top Wi-Fi standard: Wi-Fi 4 (802.11n)
- WLAN data transfer rate (max): 300 Mbit/s
- Frequency band: 5.1 - 5.8 GHz
- Transmission gain: 0 - 12 dB
- Signal strength: -40 dBm
- Channels quantity: 25 channels
- Modulation: 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
- Receiver sensitivity: -82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps
- Output power (dBm): 26
- Indoor range: 1000m
- Outdoor range: 1000m
Network
- Ethernet LAN interface type: Fast Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af
- Cabling technology: 10/100/1000Base-T(X)
Ports & interfaces
- Connectivity technology: Wired & Wireless
- Ethernet LAN (RJ-45) ports: 1
Security
- Security algorithms: 128-bit AES, 256-bit AES
- Authentication method: WPA2 AES
Management features
- Management protocols: SNMP V2
Features
- Product type: Network bridge
- Product colour: White
- LED indicators: LAN, Signal strength
Features
- International Protection (IP) code: IP66
- Mean time between failures (MTBF): 60000 h
Power
- Power source type: PoE
- AC input voltage: 100-240 V
- Power supply: 15.4 W
- DC input voltage: 24 - 48 V
- Power consumption (typical): 6 W
- Power consumption (max): 16 W
- Power over Ethernet (PoE) voltage: 48 V
- Power plug type: Type G
Operational conditions
- Operating temperature (T-T): -20 - 70 °C
- Operating temperature (T-T): -4 - 158 °F
- Operating relative humidity (H-H): 0 - 95%
- Storage temperature (T-T): -40 - 90 °C
- Storage relative humidity (H-H): 0 - 95%
Certificates
- Certification: CE, FCC
Weight & dimensions
- Antenna diameter: 16.5 cm
- Width: 119 mm
- Depth: 120 mm
- Height: 45 mm
- Weight: 300 g
