WCAP-AX-EXT

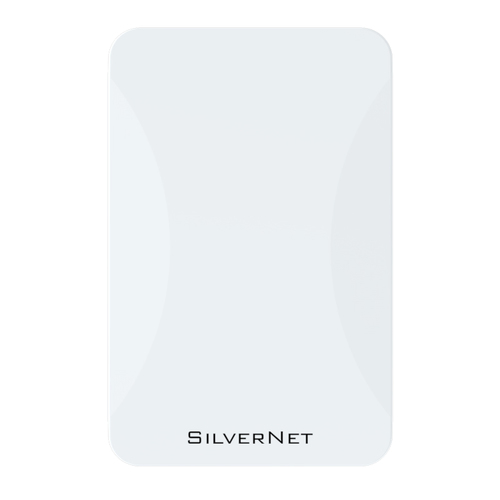

The SIL WCAP-AX-EXT is a powerful, IP67 wireless outdoor access point.
The SIL WCAP-AX-EXT is a powerful, IP67 wireless outdoor access point. As part of the new Intelligent Wi-Fi 6 “Aero” range by SilverNet, the cloud-managed WCAP-AX-EXT is designed to build high performance enterprise Wi-Fi networks, while also making enterprise management simple. This equipment offers an exceptional outdoor Wi-Fi range with a TX-Power of up to 23dBm and a coverage distance of up to 200 metres, making it perfect for a variety of uses, especially in commercial and hospitality settings. It provides robust support for hotspot functionality and supports multiple authentication methods, including vouchers, local accounts, and social media platforms like Facebook, making it suitable for shopping centers, schools, hotels, and more. The access point can be managed locally or through the cloud, offering the versatility needed to provide a comprehensive, managed Wi-Fi service tailored to your clients’ requirements. It also operates efficiently as a standalone access point. Maintain smooth operations for you and your clients. Stay updated on the health of your clients’ Wi-Fi signals and internet quality, reducing the frequency of unnecessary support calls. Tasks such as RF troubleshooting and mass software updates are simplified, and the installation process is quick and straightforward. The durable exterior of the device shields it from external interferences, including other signals and harsh weather conditions. With a standard 1-year warranty, you can have peace of mind.
Features
- Maximum data transfer rate: 1800 Mbit/s
- Maximum data transfer rate (2.4 GHz): 600 Mbit/s
- Maximum data transfer rate (5 GHz): 1200 Mbit/s
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3af
- Cabling technology: 10/100/1000Base-T(X)
- Number of users: 100 user(s)
- Maximum outdoor range: 200 m
- Transmitting power (CE): 23 dBm
Security
- Security algorithms: WEP, WPA, WPA-AES, WPA-Enterprise, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPA2-Enterprise, WPA2-PSK, WPA2-TKIP
- Service Set Identifier (SSID) features: Multiple SSIDs
- Number of SSID supported: 8
Ports & interfaces
- WAN connection: Ethernet (RJ-45)
Power
- Output voltage: 48 V
- Power consumption (max): 15 W
Design
- Placement: Pole, Wall
- Product colour: White
Design
- International Protection (IP) code: IP67
- LED indicators: LAN, Power, WAN
Antenna
- Antenna type: External
- Number of connectors: 4
Performance
- Flash memory: 128 MB
- Internal memory: 512 MB
Certificates
- Certification: CE, RoHS
Weight & dimensions
- Width: 231 mm
- Depth: 295 mm
- Height: 80 mm
Packaging content
- Quantity per pack: 1 pc(s)
Operational conditions
- Operating relative humidity (H-H): 5 - 95%
- Operating temperature (T-T): -30 - 70 °C
- Storage temperature (T-T): -40 - 70 °C
