OAN5812

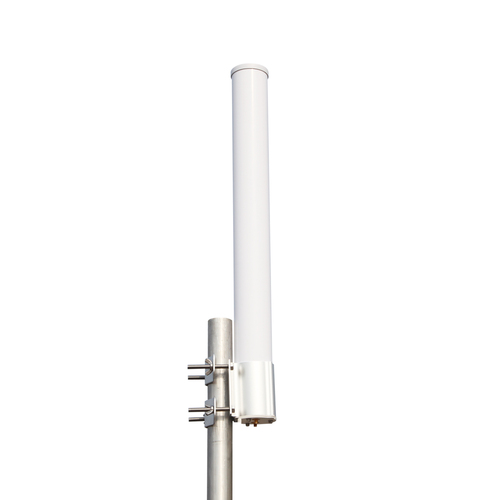

The SIL OAN5812 is an outdoor Omni antenna with a 360 degree horizontal beam width.
The SIL OAN5812 is an outdoor Omni antenna with a 360 degree horizontal beam width. It operates in the 5GHz band as is fully compatible with our Pro Range multipoint receivers. It has 2 x N-type Female connectors. To connect it to one of our multipoint receivers you will need some LMR400 cables. SilverNet offers these cables in 1, 2, 4 and 8 Metre lengths.
Performance
- Frequency band: 4.9 - 5.8 GHz
- Impedance: 50 Ω
- Horizontal beam width: 360°
- Vertical beam width: 7°
- Antenna gain level (max): 13 dBi
Features
- Antenna type: Omni-directional antenna
- Antenna connector type: 2x N-type
- Connector gender: Female
- Polarization: Dual polarization
- Voltage Standing Wave Ratio (VSWR): <2.0
- Product colour: White
- Survival wind speed: 241.4 km/h
- Wind load: 150
- Maximum operating distance: 1000 m
- Mounting: Wall/Pole
Features
- Purpose: Outdoor
- Type of clamp: U-bolt
Certificates
- Compliance certificates: RoHS, CE
- Certification: CE, RoHS
Operational conditions
- Operating temperature (T-T): -40 - 70 °C
Weight & dimensions
- Height: 800 mm
- Diameter: 7 cm
- Weight: 3 kg
Packaging content
- Quantity per pack: 1 pc(s)
