NV9321P

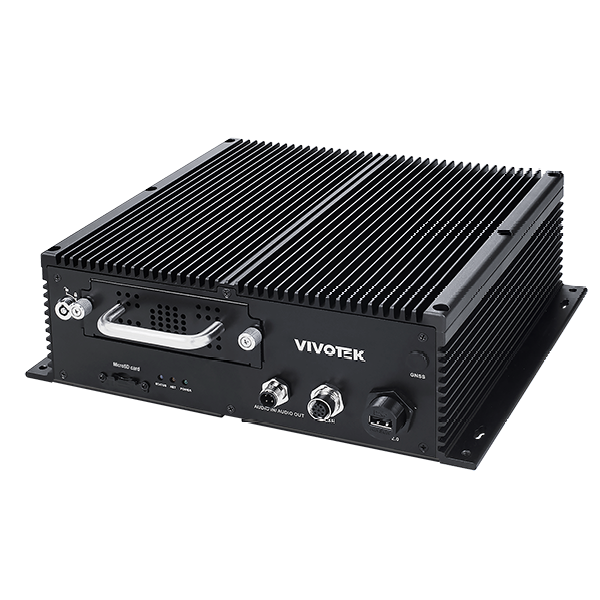

The NV9321P is a H.265 8-CH embedded PoE mobile NVR.
The NV9321P is a H.265 8-CH embedded PoE mobile NVR. VIVOTEK’s Mobile NVR supports USB, CAN (Controller Area Network) Bus integration, ignition control, and multiple I/Os, making it ideal for fleet management.
- Descriptions: 8-CH Embedded PoE Mobile NVR (M12)
- OS: Embedded Linux
- Watchdog: Hardware + Software
- Power Restoration: System Restart Automatically after Power Recovery
- LiveView Display: 8 Channels; Multi Layout Display: 1x1, 1M+5, 1P+3, 1P+6, 2x2, 2P+3, 3x3, 3V
- Video Output: HDMI x1, VGA x1
- Display Resolution: 3840x2160, 1920x1080, 1280x720
- Stream Application: Constant\Auto Adaptive Stream
- Fisheye Dewarp: Local: 1O, 1P, 1R, 1O3R, 1O8R, 1P3R; Web: 1O, 1R, 1P
- PTZ Operation: Direction Control, Home, Iris, Preset, Patrol (Group)
- Video Format: MJPEG, H.264, H.265
- Graphic Decoder: Hardware decoding
- Decoding Resolution: Up to 7680x2560
- Decoding Capability: H.265/H.264: 3840x2160 @ 90 fps (3-CH); 1920x1080 @ 360 fps (12-CH)
- Audio Format: G.711, G.726, AAC
- Audio In/Out: Line out x1
- Recording Time (sec.): Pre-Record: 5 (Max. 10); Post-Record: 20 (Max. 300)
- Recording Stream: Dual
- Recording Throughput: 192 Mbps
- Recording Mode: Continuous, Schedule, Manual, Event
- Recording Setting: Recycle (unit: Day)
- Watermark: Supported
- DISK Devices: Up to 2x 2.5“ industrial-grade SSDs (Phison MSD260, sold separately) with a cold-swappable storage bay featuring a secure key lock
- HDD Max. Capacity: Please refer to SSD supported list on VIVOTEK website
- RAID: RAID 0, 1
- Disk Management: Create, Format and Remove Disk; HDD S.M.A.R.T
- SD Card: SD card slot x1 (reserved)
- Video Clip Export: USB Dongle (FAT Format)
- Schedule Backup: FTP
- Playback Display: 4 Channels; Multi Layout Display: 1x1, 2x2, 1P+3, 1V+3
- Playback Control: Regular (Play, Pause, Stop), Rewind, Next / Previous Frame, Speed Control, Calendar, Event, Timeline, Timeline Scale, Thumbnail (Storyboard)
- Video Search: Calendar; Date/Time; Alarm
- Thumbnail Explorer (Storyboard): Listing the thumbnail of recorded video (Max. 2 CH)
- Snapshot: JPEG
- Video Clip Export: EXE
- Ethernet: 10/100/1000Mbps Ethernet (RJ-45) x1
- Network Throughput in total: 224 Mbps
- WiFi: 802.11a/b/g/n/ac 2T2R (optional accessory: WNFT-237ACN(BT) module and AMN-W21-02 antenna)
- Mobile Network: LTE (optional accessory: SIM7600G-H-M2 module and AMN-M21-02 antenna)
- PoE: 802.3at/af compliant PoE ports x8 (M12); (Total Max. 64W)
- PoE Management: Supported
- Protocols: IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter
- USB: Front: 1 (USB 2.0); Back: 1 (USB 2.0)
- CAN: Signaling x2 pair in one M12 connector
- Alarm In: x8 (DI: 5V~ 30VDC)
- Alarm Out: x4 (DO: max. 1A 30VDC or 0.5A 125VAC)
- Audio: Line out x1
- Antenna Interface: GNSS x1, WiFi x2, LTE x2 (Reserved)
- RS232: 1 Port (Reserved)
- Camera Integration: ONVIF Profile S
- GNSS: GPS/GLONASS, L1 band, 1 (default)~10Hz NMEA 0183 output rate
- G-sensor: Support 16-bit resolution, 128 to 1024 samples/sec, range: ±2, ±4, ±8, ±12, ±16 g
- Event: Motion Detection, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, GPS disconnected, GPS speed, G-sensor, PoE error
- Event Action: Video recording; email with snapshot; Buzzer; PTZ; FTP; DO (camera, system); full screen; send to CMS; VIVOCloud App Notification
- User Management: User level: administrator, regular user
- Log: System; Recording; User; Error
- Date&Time: Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time
- Language: Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese, Arabic
- Software AP: Shepherd, VSS
- Mobile/Tablet App: iViewer (Android & iOS)
- Web Browser: Chrome
- Power Input: DC 12V~48V
- Power Management: Programmable delay on/off relative to ignition or other switched voltage
- Power Consumption: Max. 155 W
- Dimensions: 230 (D) x 284 (W) x 91 (H) mm
- Weight: approx. 4.4 kg (without HDD)
- Operating Temperature: -40°C ~ 55°C (-40°F ~ 131°F)
- Humidity: 0 ~ 95%
- Safety Certifications: CE, FCC, VCCI, C-Tick, UL, CB, MIL-STD-810G, EN 50155(OT2/ST0/nominal 24VDC), EN 61373, EN 45545, EN 50121-3-2/EN 50121-4
