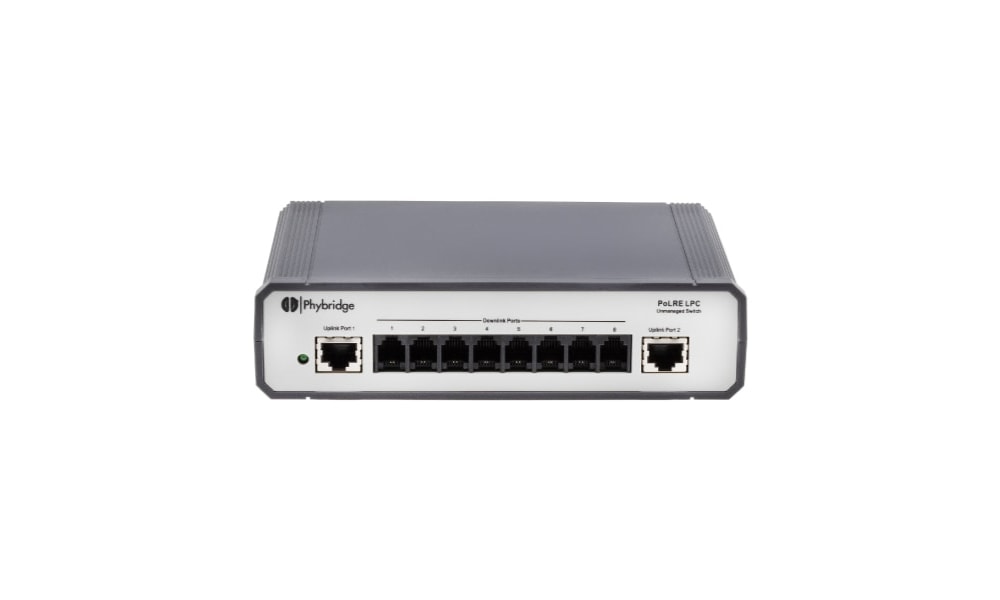

PoLRE LPC
NVT Phybridge PoLRE LPC: an 8-port unmanaged single-pair Ethernet switch delivering Ethernet and PoE with up to four times the reach of standard PoE switches.
The 8-port PoLRE LPC unmanaged single-pair Ethernet switch enables IP and IoT devices with up to four times the reach of standard Power over Ethernet switches. When paired with the PhyLink Adapters, the plug-and-play PoLRE LPC switch delivers fast Ethernet and PoE over single-pair UTP with up to 1,200ft (365m) reach.
- Model: PoLRE LPC (NV-PL-08)
- Dimensions: 4.72“ x 7.01“ x 1.77“ (12cm x 17.8cm x 4.5cm)
- Weight: 0.679 lbs (0.308 kg)
- Ethernet Uplink (Trunk IP): 2 x RJ45 ports, 10/100 Base-T auto-sensing, CAT5 copper cable
- Downlink (PoE and IP to Adapter): 8 x RJ11 jacks, up to 1,200ft (365m) over CAT3 UTP 24 AWG, 10Mbps full duplex, 22 Watts
- Power Supply: 55VDC 2A (110W power supply included)
- Power Consumption: 2.9W
- Power Injection (PoE): 55VDC, endpoint devices must be IEEE 802.3af compliant
- Operating Temperature: 14°F to 115.6°F (-10°C to 45.5°C)
- Humidity: 10% to 95% (non-condensing) at 95°F (35°C)
- Mounting: Standalone or rack mount
- Rack Mount: Model NV-PL-RMEC10
