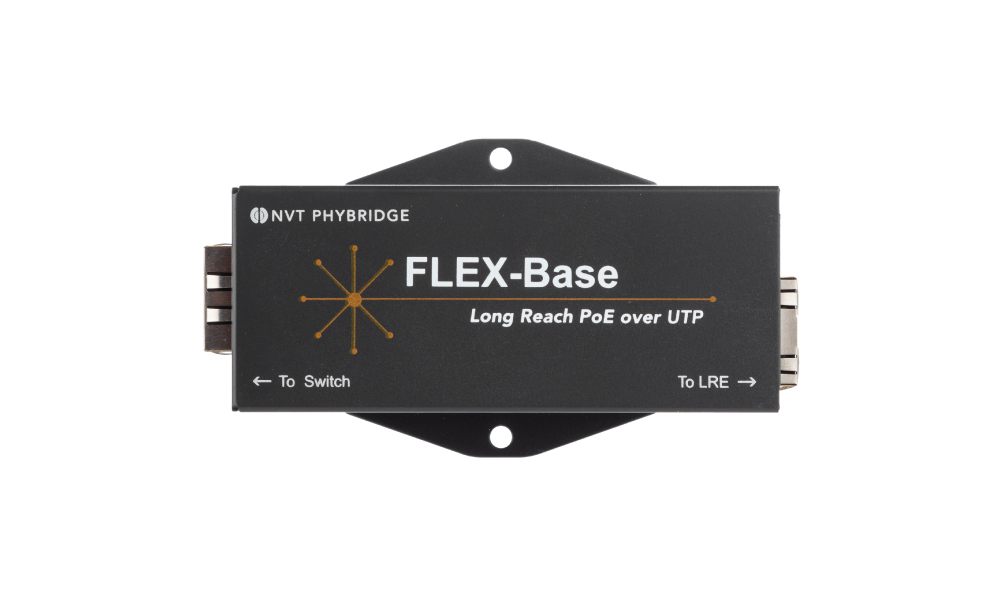

FLEX-Base Extender
NVT Phybridge FLEX-Base Extender: supercharges the downlink ports of a standard PoE switch, delivering Ethernet and PoE over multi-pair UTP with extended reach.
Extend the reach of a standard PoE switch with the FLEX-Base Ethernet Extender. The FLEX-Base Extender Solution is designed to supercharge the downlink ports of a standard Ethernet switch, delivering 10/100Mbps symmetrical (full duplex) and PoE over multi-pair UTP with distances up to 2,000ft (610m) when paired with a FLEX Link Adapter, removing the costs and disruption of additional IDF locations.
- Model: FLEX-Base (NV-FLXLK-BSE)
- Dimensions: 3.46“ x 1.97“ x 0.98“ (8.8cm x 5.0cm x 2.5cm)
- Weight: 106g (3.74oz)
- Interface (Network Infrastructure side): 1 x RJ45 port, 10/100 Base-T auto-sensing, CAT5e/6 copper cable
- Interface (IEEE side, IP device): 1 x RJ45 port, negotiates with IEEE 802.3af/at switches
- Power Supply: PoE from standard PoE switch, or external power supply; up to 50W (4-pairs) or 30W (2-pairs)
- Power Consumption: 1.5W
- Operating Temperature: -40°C to 70°C
- Mean Time Before Failure (MTBF): 20+ years
- Humidity: 10% to 95% (non-condensing) at 35°C
- Rack Mount: Model NV-RMEXT
