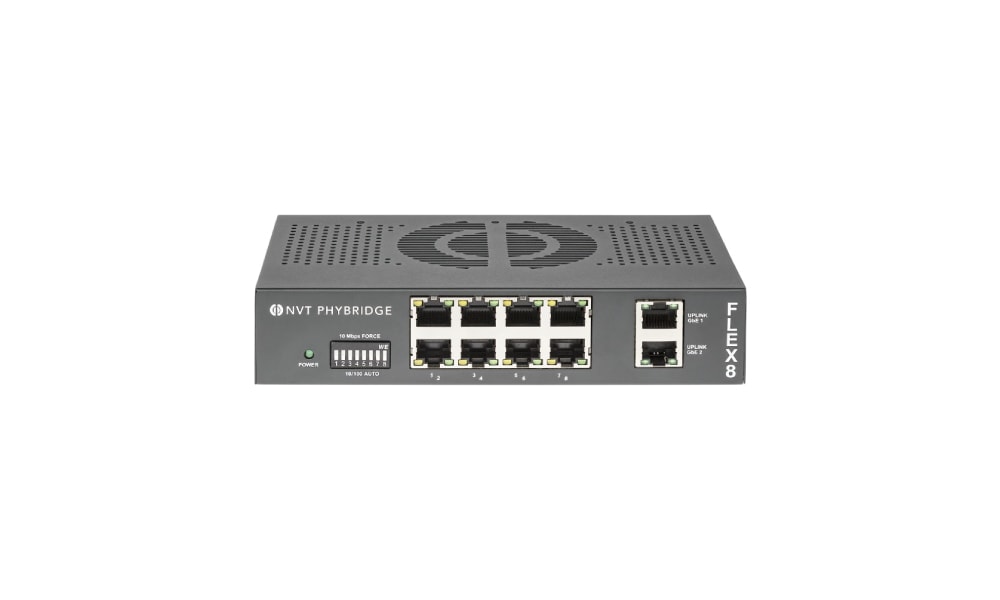

FLEX8
NVT Phybridge FLEX8: an 8-port unmanaged PoE switch delivering Ethernet and PoE over multi-pair UTP with up to 2,000ft (610m) reach.
The FLEX8 unmanaged 8 port PoE switch enables IP and IoT devices with up to six times the reach of standard Power over Ethernet switches. When paired with the FLEX Adapters, the plug-and-play FLEX8 switch delivers fast Ethernet and PoE over multi-pair UTP with up to 2,000ft (610m) reach, making it a quick, easy and cost-effective way to modernise an existing 2 or 4 pair UTP infrastructure to IP.
- Model: FLEX8 (NV-FLX-08)
- Dimensions: 7.09“ x 4.53“ x 1.45“ (18cm x 11.5cm x 3.68cm)
- Weight: 1.3 lbs (0.59 kg)
- Mounting: Standalone, rack or shelf-mountable; 2 brackets included for installation
- Ethernet Uplink (Trunk IP): 2 x RJ45 ports, 10/100/1000 Base-T auto-sensing, CAT5e copper cable
- Downlink (PoE and IP to Adapter): 8 x RJ45 jacks, 10/100Mb/s full duplex; up to 50W max on 4-pairs, 30W max on 2-pairs
- Power Supply: 48-58VDC (55VDC, 190W power supply included)
- Power Consumption: 6W
- Power Injection (PoE): 48VDC to 58VDC, IEEE 802.3af/at
- Operating Temperature: +14°F to +149°F (-10°C to +65°C)
- Humidity: 10% to 95% (non-condensing) at +95°F (+35°C)
