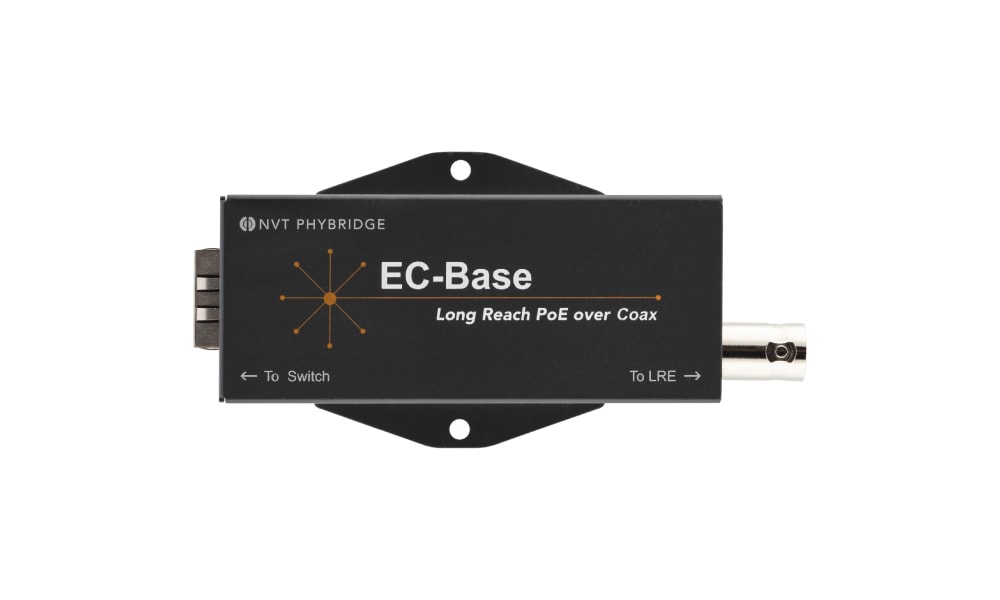

EC-Base Extender
NVT Phybridge EC-Base Extender: supercharges the downlink ports of a standard PoE switch, delivering Ethernet and PoE over coax cable with extended reach.
Extend the reach of a standard PoE switch with the EC-Base Ethernet over Coax extender. The EC-Base Extender Solution is designed to supercharge the downlink ports of a standard Ethernet switch, delivering 10/100Mbps symmetrical (full duplex) and PoE over coax with distances up to 6,000ft when paired with an EC Link Adapter, removing the costs and disruption of additional IDF locations.
- Model: EC-Base (NV-ECLK-BSE)
- Dimensions: 3.97“ x 1.98“ x 1.01“ (10.09cm x 5.03cm x 2.57cm)
- Weight: 108g (3.81oz)
- Interface (Network Infrastructure side): 1 x BNC port, coax cable (RG59, RG6, RG11)
- Interface (IEEE side, IP device): 1 x RJ45 port, negotiates with IEEE 802.3af/at switches
- Power Supply: PoE from standard PoE switch, or external power supply; up to 50W if locally powered
- Power Consumption: 1W
- Operating Temperature: -58°F to +158°F (-50°C to +70°C)
- Mean Time Before Failure (MTBF): 20+ years
- Humidity: 10% to 95% (non-condensing) at 35°C
- Rack Mount: Model NV-RMEXT
