EC10

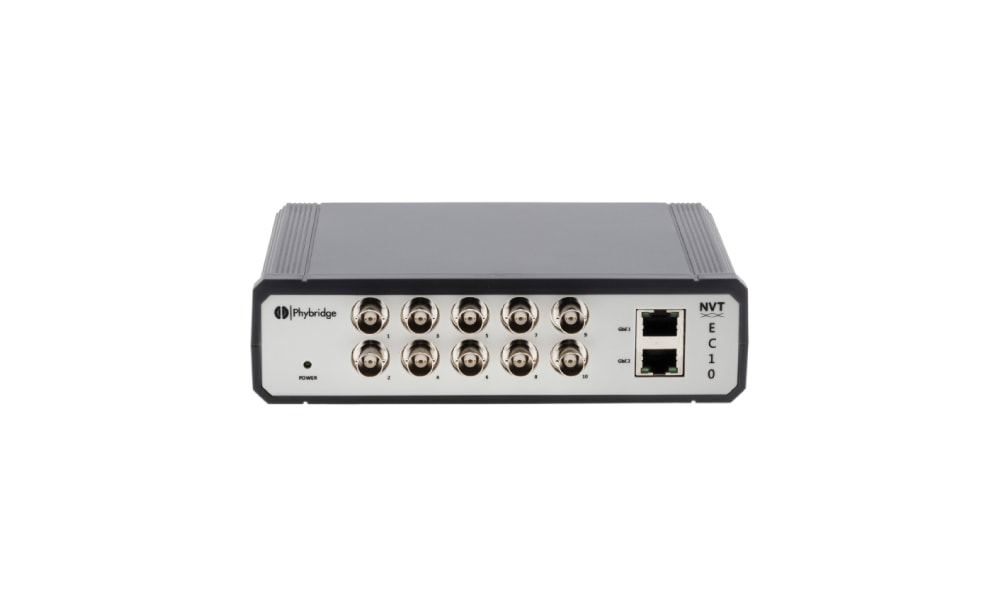

NVT Phybridge EC10: a 10-port unmanaged Ethernet-over-Coax switch delivering PoE over coax cable with up to nine times the reach of standard PoE switches.
The 10-port EC10 unmanaged Ethernet over Coax switch enables IP and IoT devices with up to nine times the reach of standard Power over Ethernet switches. When paired with the EC Adapters, the plug-and-play EC10 switch delivers fast Ethernet and PoE over coax with up to 3,000ft (915m) reach.
- Model: EC10 (NV-EC-10)
- Dimensions: 1.77“ x 7.01“ x 4.72“ (4.5cm x 17.8cm x 12cm)
- Weight: 0.679 lbs (0.308 kg)
- Mounting: Standalone, rack or shelf-mountable; 2 brackets included for installation
- Ethernet Uplink (Trunk IP): 2 x RJ45 ports, 10/100/1000 Base-T auto-sensing, CAT5e/6 copper cable
- Downlink (PoE and IP to Adapter): 10 x BNC jacks, 100Mbps full duplex, up to 30W max
- Maximum Distance: RG11 up to 3,000ft (915m); RG6 up to 2,000ft (610m); RG59 up to 1,500ft (457m)
- Power Supply: 55VDC 3A (165W power supply included)
- Power Consumption: 3.8W
- Power Injection (PoE): 48-56VDC
- Operating Temperature: 14°F to 122°F (-10°C to 50°C)
- Humidity: 10% to 95% (non-condensing) at 95°F (35°C)
- Mean Time Before Failure (MTBF): 20+ years
- Rack Mount: Model NV-PL-RMEC10
