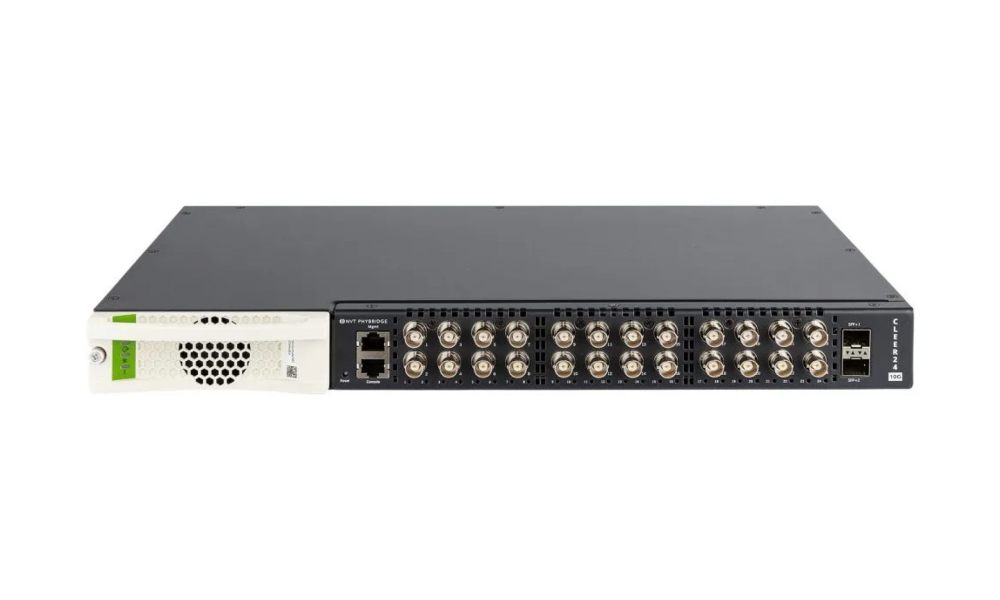

CLEER24-10G
NVT Phybridge CLEER24-10G: a 24-port Layer 3 managed Ethernet-over-Coax switch delivering PoE++ and Gigabit speeds up to 18x farther than standard PoE.
The enterprise-grade CLEER24-10G Ethernet over Coax switch enables IP and IoT devices up to 18 times farther than standard Power over Ethernet switches. The NVT Phybridge CLEER24-10G Layer 3 enterprise-grade switch is designed to make IP/IoT deployments simple, secure, and cost-effective, delivering up to 50 Watts of power (PoE++) over coax cable with reach far beyond standard PoE switches. Now with CCMT for centralised multi-switch management.
- Model: CLEER24-10G (NV-CLR-024-10G)
- Dimensions: 19in x 1U without rack ears; 1.73“ x 17.13“ x 11.22“ (HxWxD)
- Weight: 8 lb (3.63 kg)
- Mounting: Standalone, rack or shelf-mountable; 2 brackets included for installation
- Processor: MIPS32 24KEc, 500MHz
- Ethernet Uplink: Maximum 2 uplinks, each 10Gb/s full-duplex, 2 x SFP+ ports (1000 Base-T/TX/SX/LX/EX/ZX, 10GBase-T/CU/SR/LR/ER/ZR)
- Downlink (PoE and IP to Adapter): 24 x BNC jacks, 10/100Mb/s full-duplex, up to 50W per port
- Maximum Distance: RG59 up to 4,000ft (1,220m); RG6 up to 6,000ft (1,830m); RG11 up to 6,000ft (1,830m)
- Management: 1 x LAN port (MGMT) RJ45, 10/100/1000 Base-T; 1 x RS-232 console port (RJ45 to DB9, 115200/8/N/1)
- Power Supply: Hot-swappable, auto-sensing 100-240VAC, 50/60Hz; 1,000W max at 100VAC
- Power Consumption: 38W idle draw
- Power Injection (PoE): 48VDC to 58VDC
- Operating Temperature: 1000W load 14°F to 122°F (-10°C to +50°C); 500W load 14°F to 140°F (-10°C to +60°C)
- Humidity: 10% to 95% (non-condensing) at 95°F (35°C)
- MTBF: 20 years
