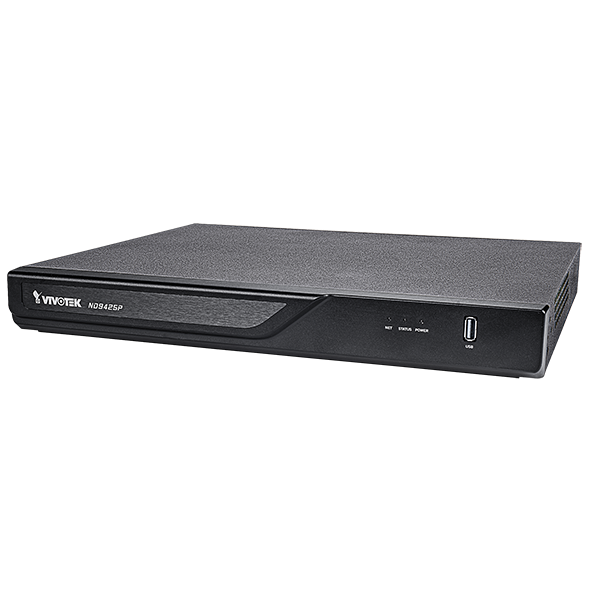

ND9425P
The ND9425P is a 16-channel embedded PoE NVR running embedded Linux, with 16-channel live view and HDMI/VGA output.
The ND9425P is a H.265 16-CH embedded PoE NVR. It supports alarm management and event search of VIVOTEK’s deep-learning video analytics technology, Smart VCA.
- Descriptions: 16-CH Embedded PoE NVR
- OS: Embedded Linux
- Watchdog: Hardware + Software
- Power Restoration: System Restart Automatically after Power Recovery
- LiveView Display: 16 Channels; Multi Layout Display: 1x1, 1M+5, 1M+7, 1M+12, 1P+3, 1P+6, 1V+6, 2x2, 2P+3, 2V+3, 3x3, 3V, 4x4
- Video Output: HDMI x1, VGA x1
- Display Resolution: 3840x2160, 1920x1080, 1280x720
- Stream Application: Constant\Auto Stream
- Fisheye Dewarp: Local: 1O, 1R, 1O3R, 1O8R; Web: 1O, 1R, 1P
- PTZ Operation: Direction Control, Home, Iris, Preset, Patrol (Group)
- Video Format: MJPEG, H.264, H.265
- Graphic Decoder: Hardware decoding
- Decoding Resolution: Up to 3840x2160
- Decoding Capability: 3840x2160 @ 30 fps (1-CH); 1920x1080 @ 120 fps (4-CH); 1280x720 @ 240 fps (8-CH); 720x480 @ 480 fps (16-CH)
- Audio Format: G.711, G.726
- Recording Time (sec.): Pre-Record: 5 (Max. 10); Post-Record: 20 (Max. 300)
- Recording Stream: Single
- Recording Throughput: 64 Mbps
- Recording Mode: Continuous, Schedule, Manual, Event
- Recording Setting: Recycle (unit: Day)
- Watermark: Supported
- DISK Devices: Internal x2 (3.5“); (HDD is purchased separately)
- HDD Max. Capacity: Please refer to HDD supported list on VIVOTEK website
- RAID: RAID 0, 1
- Disk Management: Create, Format and Remove Disk; HDD S.M.A.R.T
- External Storage: USB Storage (USB 3.0)
- Video Clip Export: USB pen drive (FAT Format)
- Schedule Backup: FTP
- Playback Display: 4 Channels; Multi Layout Display: 1x1, 2x2, 1P+3, 1V+3
- Playback Control: Regular (Play, Pause, Stop), Rewind, Next / Previous Frame, Speed Control, Calendar, Event, Timeline, Timeline Scale, Thumbnail (Storyboard)
- Video Search: Calendar; Date/Time; Alarm
- Thumbnail Explorer (Storyboard): Listing the thumbnail of recorded video (Max. 2 CH)
- Snapshot: JPEG
- Video Clip Export: EXE
- Ethernet: 10/100/1000Mbps Ethernet (RJ-45) x1
- Network Throughput in total: 88 Mbps
- PoE: 802.3at/af compliant PoE ports x16; (Total Max. 200W)
- PoE Management: Supported
- Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter
- USB: Front: 1 (USB 3.0); Back: 1 (USB 2.0)
- Alarm In: x4 (max. 30VDC)
- Alarm Out: x1 (DO: max. 1A/30VDC)
- Audio In: 3.5 mm Phone Jack Audio Input x1 (HW available, FW feature not supported yet)
- Audio Out: 3.5 mm Phone Jack Audio Output x1
- Camera Integration: ONVIF Profile S
- Event: Motion Detection, Smart VCA Event, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, PoE error
- Event Action: Video recording; email with snapshot; PTZ; FTP; Buzzer; DO (camera, system); full screen; send to CMS; VIVOCloud App Notification
- User Management: User level: administrator, regular user
- Log: System; Recording; User; Error
- Date&Time: Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time
- Language: Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese, Arabic
- VCA Counting Solution: Supported
- VCA Event Search: Supported
- Trend Micro IoT Security: Supported (3-year free trial)
- Cybersecurity Management: Supported
- Software AP: Shepherd, VAST 2, VSS
- Mobile/Tablet App: iViewer (Android & iOS)
- Web Browser: Internet Explorer 10 (32 bit) or later/ Windows; Chrome v68.0.3 or later/ Windows for new web
- Cloud service: VIVOCloud
- Power Input: 100-240V AC, 50/60Hz
- Power Consumption: Max. 255 W
- Dimensions: 320 (D) x 366 (W) x 46 (H) mm
- Weight: 2.5 kg
- Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
- Humidity: 0 ~ 95%
