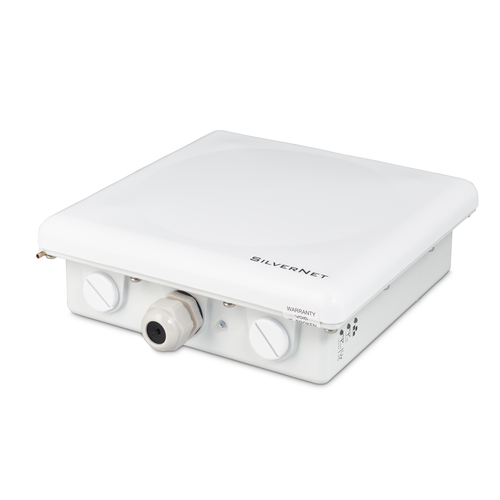

LITE 95-PCP G3
SilverNet LITE 95-PCP G3: a metal-enclosed outdoor wireless bridge link at up to 95 Mbit/s over 6km.
The LITE 95-PCP G3 is SilverNet’s metal enclosed wireless bridge, built to resist electromagnetic interference and lightning strikes over links of up to 6km. It ships as a pre configured pair with a built in dual polarised 18dBi antenna and 256 bit AES encryption, at a 95 Mbit/s data rate.
Data transmission
- Maximum data transfer rate: 95 Mbit/s
- Maximum transfer distance: 6000 m
- Supported data transfer rates: 95, 240, 500Mbps
Antenna
- Antenna design: Internal
- Antenna gain level (max): 18 dBi
- Pan/tilt-axis range: 180°
- Antennas quantity: 1
Wireless LAN features
- Wi-Fi band: Single-band (5 GHz)
- Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
- WLAN data transfer rate (max): 1300 Mbit/s
- Frequency band: 5.1 - 5.8 GHz
- Transmission gain: 0 - 18 dB
- Signal strength: -40 dBm
- Channels quantity: 25 channels
- Modulation: 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
- Receiver sensitivity: -82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps
- Output power (dBm): 26
- Indoor range: 6000m
- Outdoor range: 6000m
Network
- Ethernet LAN interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x
- Cabling technology: 10/100/1000Base-T(X)
Ports & interfaces
- Connectivity technology: Wired & Wireless
- Ethernet LAN (RJ-45) ports: 1
- Power over Ethernet plus (PoE+) ports quantity: 1
Security
- Security algorithms: 256-bit AES, 802.1x RADIUS, SNMPv2, SSH
- Authentication method: WPA2 AES
Management features
- Management protocols: SNMP V2
Features
- Product type: Network bridge
- Product colour: White
- LED indicators: LAN, Signal strength
Features
- International Protection (IP) code: IP67
- Mean time between failures (MTBF): 60000 h
Power
- Power source type: DC, PoE
- AC input voltage: 100 - 240 V
- Power supply: 15.4 W
- DC input voltage: 24-48/48-56 V
- Power consumption (typical): 6 W
- Power consumption (max): 16 W
- Power over Ethernet (PoE) voltage: 48 V
- Power plug type: Type G
Operational conditions
- Operating temperature (T-T): -20 - 70 °C
- Operating temperature (T-T): -4 - 158 °F
- Operating relative humidity (H-H): 0 - 95%
- Storage temperature (T-T): -40 - 90 °C
- Storage relative humidity (H-H): 0 - 95%
Certificates
- Certification: CE, FCC
Weight & dimensions
- Antenna diameter: 30 cm
- Width: 215 mm
- Depth: 215 mm
- Height: 77 mm
- Weight: 1.6 kg
