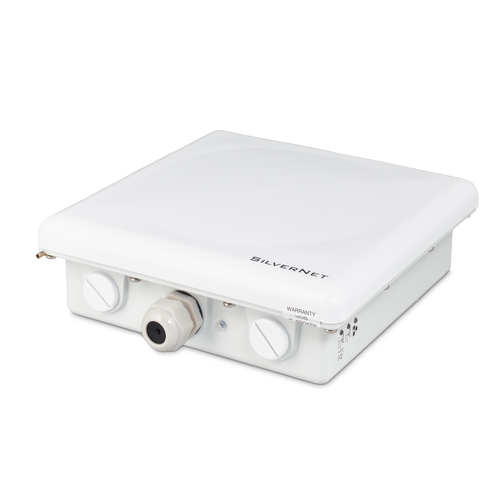

LITE 240-PCP G3/4
The SIL LITE 240-PCP is an outdoor wireless link that can transmit up to 240Mbps at distances as far as 6km.
The SIL LITE 240-PCP is an outdoor wireless link that can transmit up to 240Mbps at distances as far as 6km. The radio has a metal enclosure which offers enhanced protection from any external electromagnetic interference and has built-in surge protection to protect itself from lightening strikes and power surges. The SIL LITE 240-PCP comes as a pre-configured pair and includes PoE injectors and Heavy duty 3 axis Tilt and Swivel brackets. It has a built-in dual polarised 18dBi antenna, includes all the features of the standard LITE PCP and is upgradable to 500Mbps via a software key. This radio is part of the SilverNet PRO Range. The PRO Range is a family of class leading, wireless outdoor bridge solutions that have been optimised for long transmission distances and designed to be extremely compact and rugged. The PRO Range will save money, while servicing the need to construct a solid and reliable wireless system replacing the requirement for expensive lease lines. Couple that with the FREE SilverView network monitoring software and you have an outstanding feature packed solution.
Data transmission
- Maximum data transfer rate: 240 Mbit/s
- Maximum transfer distance: 6000 m
- Supported data transfer rates: 240Mbps
Antenna
- Antenna design: Internal
- Antenna gain level (max): 18 dBi
- Pan/tilt-axis range: 180°
- Antennas quantity: 1
Wireless LAN features
- Wi-Fi band: Single-band (5 GHz)
- Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
- WLAN data transfer rate (max): 1300 Mbit/s
- Frequency band: 5.1 - 5.8 GHz
- Transmission gain: 0 - 18 dB
- Signal strength: -40 dBm
- Channels quantity: 25 channels
- Modulation: 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
- Receiver sensitivity: -82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps
- Output power (dBm): 26
- Indoor range: 6000m
- Outdoor range: 6000m
Network
- Ethernet LAN interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x
- Cabling technology: 10/100/1000Base-T(X)
Ports & interfaces
- Connectivity technology: Wired & Wireless
- Ethernet LAN (RJ-45) ports: 1
Security
- Security algorithms: 256-bit AES, 802.1x RADIUS, SNMP, SNMPv2, SSH
- Authentication method: WPA2 AES
Management features
- Management protocols: SNMP V2
Features
- Product type: Network bridge
- Product colour: White
- LED indicators: LAN, Signal strength
Features
- International Protection (IP) code: IP67
- Mean time between failures (MTBF): 60000 h
Power
- Power source type: DC, PoE
- AC input voltage: 100 - 240 V
- Power supply: 15.4 W
- DC input voltage: 24-48/48-56 V
- Power consumption (typical): 6 W
- Power consumption (max): 16 W
- Power over Ethernet (PoE) voltage: 48 V
- Power plug type: Type G
Operational conditions
- Operating temperature (T-T): -20 - 70 °C
- Operating temperature (T-T): -4 - 158 °F
- Operating relative humidity (H-H): 0 - 95%
- Storage temperature (T-T): -40 - 90 °C
- Storage relative humidity (H-H): 0 - 95%
Certificates
- Certification: CE, FCC
Weight & dimensions
- Antenna diameter: 30 cm
- Width: 215 mm
- Depth: 215 mm
- Height: 77 mm
- Weight: 1.6 kg
Packaging content
- Packaging content: Includes 2 x radios, 2 x PoE injector PSU’s and 2 x Tilt and Swivel 3 Axis mounting brackets.
