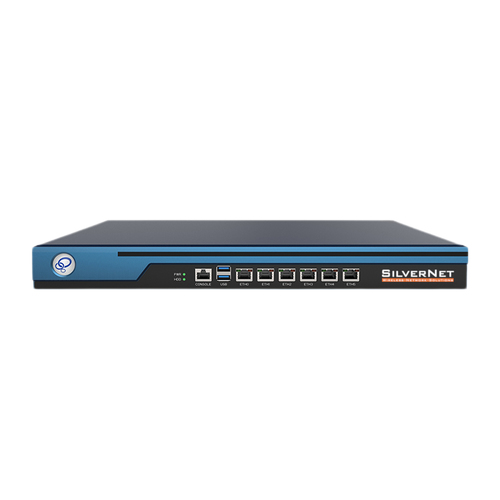

WCAP-AX Controller
The SIL WAC-AX is a highly efficient, sleek, multi-functional gateway and wireless access point controller.
The SIL WAC-AX is a highly efficient, sleek, multi-functional gateway and wireless access point controller. As part of the new Intelligent Wi-Fi 6 “Aero” range by SilverNet, simple yet innovative, no special training is needed to operate this intuitive controller system. This powerful central controller will seamlessly work with all SilverNet network enterprise class AP equipment. For a more efficient network, a single controller can manage Wi-Fi networks with multiple distributed access points. Whether you require single or multiple WLAN networks on your dashboard, the WAC interface allows for both. It’s easy to keep an eye on things with real-time status monitoring and customised configuration. Install the controller hardware either in an on-site central control room, or even in the cloud for local or remote management via public IP address. The WAC is also effective and powerful when used as a standalone gateway. One of the benefits of centralised management between the controller and APs is speedy synchronisation. Quickly synchronise the wireless configuration with each AP to create a unified Wi-Fi network construction. From providing hotspot functionality, to supporting various hotspot authentication methods such as voucher and account, it provides strong support across shopping centres, schools, hotels and more. Further support comes from the 1 year warranty offered, as standard, by SilverNet.
Design
- Product colour: Black, Blue
- Rack capacity: 1U
- Enclosure material: Aluminium
- Mounting type: Desktop/Rack mounting
- LED indicators: Power, SSD
Performance
- Processor manufacturer: Intel
- Processor family: Intel Atom®
- Processor frequency: 1800 MHz
- Number of processors installed: 1
- Internal memory: 2048 MB
- Internal memory type: DDR
- SSD capacity: 32 GB
Protocols
- Management protocols: Web / CLI / Telnet Management, Remote Management
- Supported network protocols: IEEE 802.3, 802.3u, 802.3ab TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS, IPsec, PPTP, L2TP, CAPWAP Protocol
- Supported protocols: ACL / URL Filtering Routing / NAT / Session Limit / Bandwidth Control IPSec / L2TP / PPTP / OpenVPN Voucher / Local User / SMS / RADIUS / External Portal Server Authentication / MAC Authentication / Accounting Load Balancing / MWAN / 802.1x
Network
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Networking standards: IEEE 802.11e, IEEE 802.1Q
- Response time to ethernet ping: 0.1 s
- Cabling technology: 10/100/1000Base-T(X)
Security
- Security algorithms: WEP, WPA, WPA-AES, WPA-Enterprise, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPA2-TKIP
Ports & interfaces
- USB 2.0 ports quantity: 2
- VGA (D-Sub) ports quantity: 1
- Console port: RJ-45
Ports & interfaces
- Number of console ports: 1
- Ethernet LAN (RJ-45) ports: 6
Management features
- Management platform: SilverCloud
Power
- Input voltage: 110-240 V
- Output voltage: 12 V
- Output current: 5 A
Weight & dimensions
- Width: 430 mm
- Depth: 300 mm
- Height: 44.5 mm
- Weight: 2.2 kg
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Technical details
- Warranty period: 1 year(s)
