WCAP-AX-EXT+

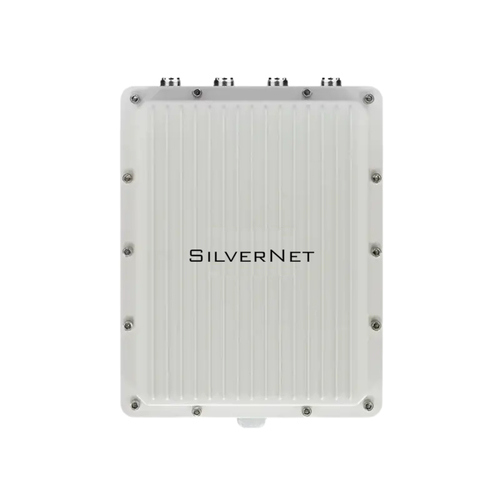

The SIL WCAP-AX-EXT+ is an outdoor 802.11ax access point featuring four N-type antenna connectors.
The SIL WCAP-AX-EXT+ is an outdoor 802.11ax access point featuring four N-type antenna connectors. It is part of SilverNet’s new Intelligent Wi-Fi 6 “Aero” series, designed for use with external high-gain antennas to create high-performance enterprise Wi-Fi networks. This device offers an exceptional outdoor Wi-Fi range with a TX-Power of up to 23dBm and a wireless coverage distance of up to 200 metres (depending on the antennas used), making it perfect for a wide range of uses, especially in commercial and hospitality settings. It supports various hotspot authentication methods, including vouchers, local accounts, and social media platforms like Facebook, ensuring robust connectivity in shopping centers, schools, hotels, and more. The WCAP-AX-EXT+ provides the option to manage the access point locally or through a controller, offering the versatility to deliver a comprehensive, managed Wi-Fi service tailored to your clients’ requirements. It also operates efficiently as a standalone access point. This equipment keeps operations smooth for you and your clients by monitoring Wi-Fi client signal health and internet quality, reducing the frequency of unnecessary support calls. Tasks such as RF troubleshooting and bulk software updates are simplified, and installation is quick and straightforward. The durable exterior of the WCAP-AX-EXT+ shields the device and its components from interference and harsh weather conditions. With a standard one-year warranty, you can have peace of mind regarding its reliability.
Features
- Maximum data transfer rate: 1800 Mbit/s
- Maximum data transfer rate (2.4 GHz): 600 Mbit/s
- Maximum data transfer rate (5 GHz): 1200 Mbit/s
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3af
- Cabling technology: 10/100/1000Base-T(X)
- Number of users: 100 user(s)
- Maximum outdoor range: 200 m
- Transmitting power (CE): 23 dBm
Security
- Security algorithms: WEP, WPA, WPA-AES, WPA-Enterprise, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPA2-Enterprise, WPA2-PSK, WPA2-TKIP
- Service Set Identifier (SSID) features: Multiple SSIDs
- Number of SSID supported: 8
Ports & interfaces
- WAN connection: Ethernet (RJ-45)
Power
- Output voltage: 48 V
- Power consumption (max): 15 W
Design
- Placement: Pole, Wall
- Product colour: White
Design
- International Protection (IP) code: IP65
- LED indicators: LAN, Power, WAN
Antenna
- Antenna type: External
- Number of connectors: 4
Performance
- Flash memory: 128 MB
- Internal memory: 512 MB
Certificates
- Certification: CE, RoHS
Weight & dimensions
- Width: 231 mm
- Depth: 295 mm
- Height: 80 mm
Packaging content
- Quantity per pack: 1 pc(s)
Operational conditions
- Operating relative humidity (H-H): 5 - 95%
- Operating temperature (T-T): -30 - 70 °C
- Storage temperature (T-T): -40 - 70 °C
