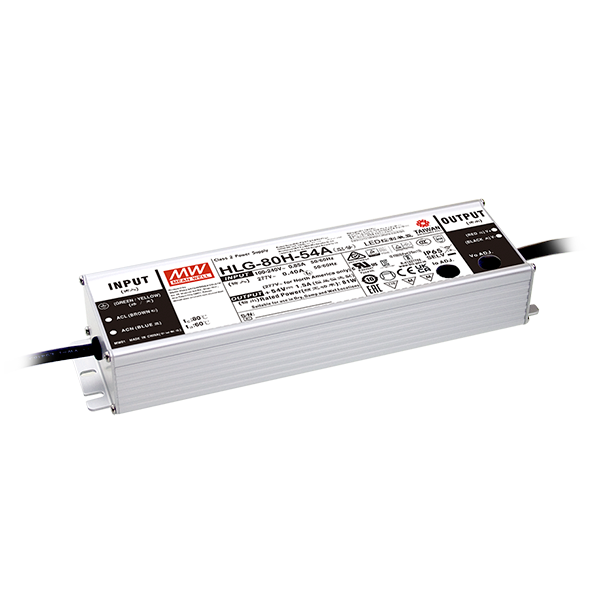

HLG-80H-54
The HLG-80H-54 is a Vivotek 54VDC power supply rated 80W max, for 90-305VAC input.
The HLG-80H-54 is a Vivotek power supply.
- Power Input Range: 90~305VAC
- Input Frequency Range: 47~63 Hz
- Input Current: 0.85A/115VAC, 0.425A/230VAC
- Output Voltage Adjustment Range: 54VDC
- Output Current: 1.5A
- Output Power: 81W max
- Operating Temperature: -40°C to +80°C
- Operating Humidity: 20 to 90% RH (Non-Condensing)
- Dimensions: 195.6 (L) x 61.5 (W) x 38.8(H) mm
- Certifications: CE/CB/TUV/UL/BIS/PSE/KC/EAC
