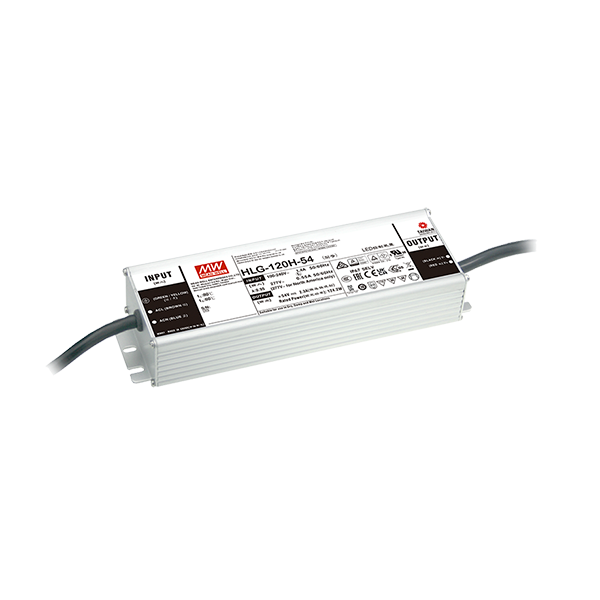

HLG-120H-54
The HLG-120H-54 is a Vivotek 54VDC power supply rated 120W max, for 90-305VAC input.
The HLG-120H-54 is a Vivotek power supply.
- Power Input Range: 90~305VAC
- Input Frequency Range: 47~63 Hz
- Input Current: 1.4A/115VAC, 0.6A/230VAC
- Output Voltage Adjustment Range: 54VDC
- Output Current: 2.3A
- Output Power: 124.2W max
- Operating Temperature: -40°C to +80°C
- Operating Humidity: 20 to 90% RH (Non-Condensing)
- Dimensions: 220 (L) x 68 (W) x 38.8(H) mm
- Certifications: CE/CB/TUV/UL/BIS/PSE/KC/EAC
