GAN5824

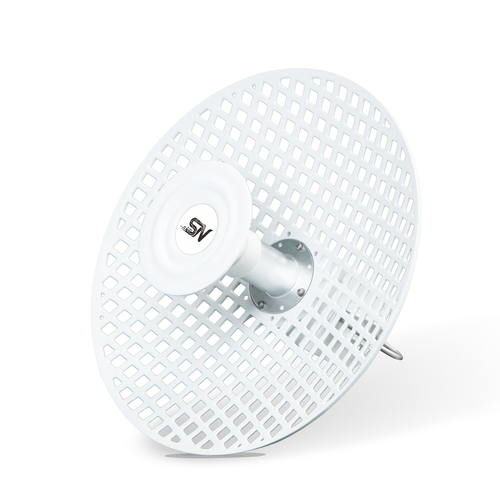

The SIL GAN5824 is an outdoor grid antenna featuring a narrow 9-degree beam width.
The SIL GAN5824 is a compact outdoor grid antenna with a wider 9-degree beam width and 24dBi of gain, easier to align than a narrow-beam dish while still reaching well on the 5GHz band. Its grid structure sheds wind well, suited to coastal sites, and it pairs with SilverNet’s Pro Range multipoint receivers over two N-type female connectors (LMR400 cable sold separately in 1, 2, 4 or 8 metre lengths).
Performance
- Frequency band: 4.9 - 7.1 GHz
- Impedance: 50 Ω
- Horizontal beam width: 9°
- Vertical beam width: 9°
- Antenna gain level (max): 24 dBi
Features
- Antenna type: Parabolic antenna
- Antenna connector type: 2x N-type
- Polarization: Dual polarization
- Voltage Standing Wave Ratio (VSWR): <2.0
- Product colour: White
- Survival wind speed: 240 km/h
- Wind load: 150
- Mounting: Wall/Pole
- Purpose: Outdoor
Features
- Front to back ratio: 30 dB
Certificates
- Compliance certificates: RoHS, CE
- Certification: CE, RoHS
Operational conditions
- Operating temperature (T-T): -40 - 70 °C
Weight & dimensions
- Diameter: 40 cm
- Weight: 2 kg
Packaging content
- Quantity per pack: 1 pc(s)
