GAN5836
The SIL GAN5836 is an outdoor grid antenna featuring a narrow 3-degree beam width and 36dBi of gain.

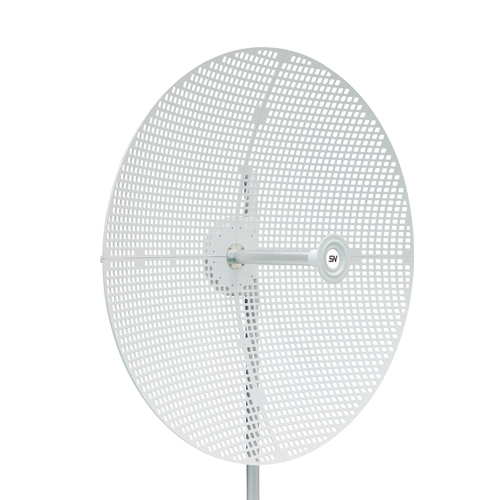

The SIL GAN5836 is a large outdoor grid antenna with a narrow 3-degree beam width and 36dBi of gain, for long-distance point-to-point links on the 5GHz band where a tightly focused beam matters more than ease of alignment. Its grid structure sheds wind well, suited to coastal sites, and it pairs with SilverNet’s Pro Range multipoint receivers over two N-type female connectors (LMR400 cable sold separately in 1, 2, 4 or 8 metre lengths).
Performance
- Frequency band: 4.9 - 7.1 GHz
- Impedance: 50 Ω
- Horizontal beam width: 3°
- Vertical beam width: 3°
- Antenna gain level (max): 36 dBi
Features
- Antenna type: Parabolic antenna
- Antenna connector type: 2x N-type
- Polarization: Dual polarization
- Voltage Standing Wave Ratio (VSWR): <2.0
- Product colour: White
- Survival wind speed: 240 km/h
- Wind load: 150
- Mounting: Wall/Pole
- Purpose: Outdoor
Features
- Front to back ratio: 35 dB
Certificates
- Compliance certificates: RoHS, CE
- Certification: CE, RoHS
Operational conditions
- Operating temperature (T-T): -40 - 70 °C
Weight & dimensions
- Diameter: 120 cm
- Weight: 10 kg
Packaging content
- Quantity per pack: 1 pc(s)
