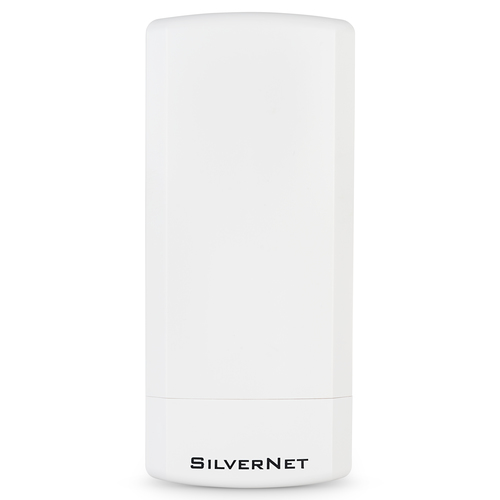

ECHO ST - Low Cost Solution
The ECHO Product range is especially suited for rural and WISP (Wireless Internet Service Provider) type applications where cost is most important.
The ECHO Product range is especially suited for rural and WISP (Wireless Internet Service Provider) type applications where cost is most important. The ECHO-ST will save money, whilst servicing the need to construct a solid and reliable wireless system replacing the requirement for expensive leased lines. The SIL-ECHO-ST (CPE - Client Premises Equipment) is a low cost driven product, that can be used in Point to Point (2 x ECHO-ST radios in a link) or Point to Multipoint (using ECHO-BS as multipoint collector + Multiple ECHO-ST) configurations. The ECHO Range is a budget wireless outdoor bridge that has been optimised for last mile access with a compact design. Couple that with the FREE SilverView network monitoring software and you have an outstanding feature packed solution.
Features
- Maximum data transfer rate: 300 Mbit/s
- Ethernet LAN data rates: 10, 100 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11n
- Transmitting power: 23 dBmW
- Receiver sensitivity: -74dBm@300Mbps -78dBm@54Mbps -98dBm@1Mbps
Security
- Security algorithms: 128-bit AES, WPA, WPA2-AES, WPA2-PSK, WPA2-TKIP
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
Power
- Output voltage: 24 V
- Power consumption (typical): 6 W
Design
- Product colour: White
- Housing material: Plastic
- LED indicators: LAN, Power, WLAN
Antenna
- Antenna type: Internal
- Antenna gain level (max): 16 dBi
Weight & dimensions
- Width: 200 mm
- Depth: 90 mm
- Height: 68 mm
- Weight: 270 g
Packaging content
- Quantity per pack: 1 pc(s)
Operational conditions
- Operating relative humidity (H-H): 10 - 95%
- Operating temperature (T-T): -40 - 65 °C
- Storage temperature (T-T): -40 - 85 °C
