AP1200 90

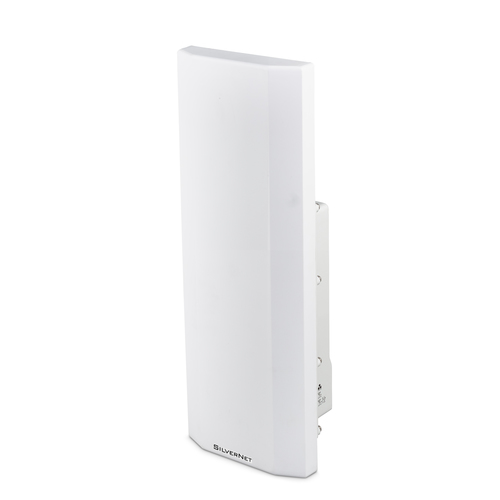

The ACCESS 1200-90 Dual AP is a highly secure dual-frequency Wi-Fi access point featuring advanced MIMO spatial multiplexing and ultrafast radio speeds.
The ACCESS 1200-90 Dual AP is a highly secure dual-frequency Wi-Fi access point featuring advanced MIMO spatial multiplexing and ultrafast radio speeds. It delivers exceptional data throughput, achieving up to 240Mbps duplex on 802.11n 2.4GHz and up to 500Mbps duplex on 802.11ac 5GHz simultaneously. This access point can create multiple AP cells, increasing the number of devices that can connect per node. It can reach radio speeds of up to 300Mbps on 2.4GHz and 867Mbps on 5GHz, providing a combined potential bandwidth of 1167Mbps. Fully compatible with both existing and new network installations, the ACCESS 1200-90 Dual AP is ideal for providing stable, long-range Wi-Fi for laptops, tablets, and handheld devices. The ACCESS 1200-90 Dual AP supports bridging, meshing, roaming, and PoE. It also comes with the free SilverView Controller Software for easy management and monitoring.
Features
- Maximum data transfer rate: 1167 Mbit/s
- Maximum data transfer rate (2.4 GHz): 300 Mbit/s
- Maximum data transfer rate (5 GHz): 867 Mbit/s
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Frequency band: 2.412-2.472, 5.1-5.8 GHz
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af
- Cabling technology: 10/100/1000Base-T(X)
- MIMO type: Multi User MIMO
- Modulation: 16-QAM, 256-QAM, BPSK, QPSK
- Virtual LAN features: IP subnet-based VLAN, Interface-based VLAN, Multiple VXLAN (MUX VLAN), Port-based VLAN, Private VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID)
- Number of VLAN IDs: 4095
- Transmitting power: 26 dBmW
- Receiver sensitivity: -82dBm@54Mbps, -74dBm@300Mbps, -72dBm@867Mbps, -68dBm@1.3Gbps
Security
- Security algorithms: 256-bit AES, SNMP, SNMPv2, SSH
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- Internal RJ-45 ports quantity: 2
Power
- AC input voltage: 100 - 240 V
- Output voltage: 24-48, 48-56 V
- Power consumption (typical): 6 W
- Power consumption (max): 16 W
- Power supply: 15.4 W
- Power plug type: Type G
Design
- Placement: Pole
- Product colour: White
- International Protection (IP) code: IP67
- LED indicators: LAN, Signal strength
Antenna
- Antenna type: Internal
- Antenna direction type: Directional
- Antenna features: Integrated antenna
- Antennas quantity: 1
- Antenna gain level (max): 13 dBi
- Polarization: Dual polarization
Performance
- Compatible operating systems: Microsoft Windows, Mac OS, Linux Distributions
- Minimum system requirements: Internet Explorer, Google Chrome, Mozilla Firefox
Certificates
- Certification: CE, FCC
Weight & dimensions
- Width: 450 mm
- Depth: 170 mm
- Height: 65 mm
- Weight: 2.3 kg
Packaging content
- Quantity per pack: 1 pc(s)
- Packaging content: Includes 1 x radio, 1 x PoE injector PSU and 1 x Tilt and Swivel 3 Axis mounting bracket.
- Bundled software: SilverView Pro Network Management & Monitoring Software
Operational conditions
- Operating relative humidity (H-H): 0 - 95%
- Operating temperature (T-T): -20 - 70 °C
- Storage temperature (T-T): -40 - 90 °C
