AP1200-360

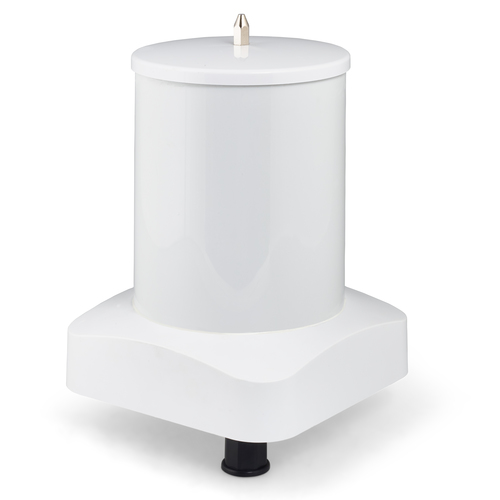

The ACCESS 1200 360 Dual AP is a highly secure Dual Frequency Wi-Fi access point.
The ACCESS 1200 360 Dual AP is a highly secure Dual Frequency Wi-Fi access point. Enhanced features, including, MIMO spatial multiplexing, ultrafast radio speed, gives the ACCESS 1200 360 Dual AP unparalleled data throughput capabilities of up to 240Mbps Duplex on 802.11n 2.4GHz and up to 500Mbps Duplex on 802.11ac 5GHz frequencies simultaneously. The ACCESS 1200 360 Dual AP can create multiple AP cells, which increases the number of devices able to connect per node and can achieve radio speeds up to 300Mbps and 867Mbps giving a potential bandwidth of 1167Mbps. It is fully integrateable with existing or new network installations were stable long range Wi-Fi is required for connecting laptops, tablets or handheld devices. Supports Bridging, MESHING, Roaming, PoE and comes with our FREE SilverView Controller Software. The SilverNet ACCESS Range 1200 360 Dual AP is a class leading wireless AP system that has been optimised for stable and reliable transmission over distances that require BYOD (Bring Your Own Device) access such as Wi-Fi coverage.
Antenna
- Antenna type: Internal
- Antenna direction type: Omni-directional
- Antenna features: Integrated antenna
- Antenna gain level (max): 7 dBi
- Antenna connector type: RP-MMCX
- Antennas quantity: 4
- Polarization: Dual polarization
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
Security
- Security algorithms: 256-bit AES, SNMP, SNMPv2, SSH
Design
- Placement: Pole
- Product colour: White
Design
- International Protection (IP) code: IP66
- LED indicators: LAN, Signal strength
- Cable length: 100 m
Features
- Maximum data transfer rate: 1167 Mbit/s
- Maximum data transfer rate (2.4 GHz): 300 Mbit/s
- Maximum data transfer rate (5 GHz): 867 Mbit/s
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Frequency band: 2.412-2.472, 5.1-5.8 GHz
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af
- Cabling technology: 10/100/1000Base-T(X)
- MIMO type: Multi User MIMO
- Modulation: 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
- Virtual LAN features: IP subnet-based VLAN, Interface-based VLAN, Multiple VXLAN (MUX VLAN), Port-based VLAN, Private VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID)
- Number of VLAN IDs: 4095
- Transmitting power: 26 dBmW
- Receiver sensitivity: -82dBm@54Mbps, -74dBm@300Mbps, -72dBm@867Mbps, -68dBm@1.3Gbps
Performance
- Compatible operating systems: Microsoft Windows, Mac OS, Linux Distributions
- Minimum system requirements: Internet Explorer, Google Chrome, Mozilla Firefox
Power
- Output voltage: 24-48, 48-56 V
- AC input voltage: 100 - 240 V
- Power supply: 15.4 W
- Power consumption (typical): 6 W
- Power consumption (max): 16 W
- Power plug type: Type G
Certificates
- Certification: CE, FCC
Operational conditions
- Operating temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage temperature (T-T): -40 - 90 °C
Weight & dimensions
- Width: 180 mm
- Depth: 180 mm
- Height: 250 mm
- Weight: 2 kg
Packaging content
- Quantity per pack: 1 pc(s)
- Packaging content: Includes 1 x radio, 1 x PoE injector PSU and 1 x Tilt and Swivel 3 Axis mounting bracket.
- Bundled software: SilverView Pro Network Management & Monitoring Software
Warranty
- Warranty period: 2 year(s)
