DAN5829

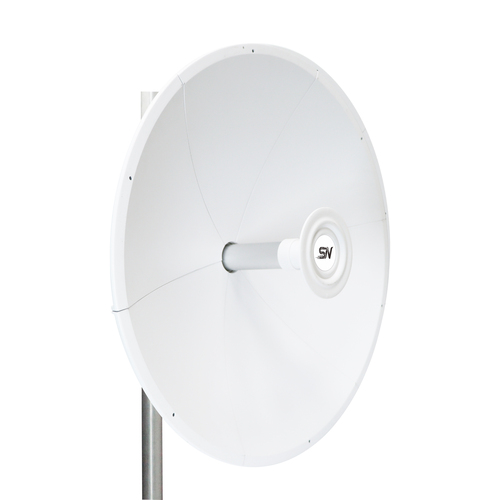

The SIL DAN5829 is an outdoor Dish antenna with a narrow beam width of 5 degrees.
The SIL DAN5829 is an outdoor Dish antenna with a narrow beam width of 5 degrees. It operates on the 5GHz band and is compatible with Pro Range multipoint receivers. The Dish antenna is ideal for long distance transmission. This antenna has two N-type female connectors. To connect to our SIL-BASE, LMR400 cables are required. SilverNet provides these cables in lengths of 1, 2, 4, and 8 metres.
Performance
- Frequency band: 4.9 - 7.1 GHz
- Impedance: 50 Ω
- Horizontal beam width: 5°
- Vertical beam width: 5°
- Antenna gain level (max): 29 dBi
Features
- Antenna type: Parabolic antenna
- Antenna connector type: 2x N-type
- Polarization: Dual polarization
- Voltage Standing Wave Ratio (VSWR): <2.0
- Product colour: White
- Survival wind speed: 200 km/h
- Mounting: Wall/Pole
- Purpose: Outdoor
- Front to back ratio: 35 dB
Certificates
- Compliance certificates: RoHS, CE
- Certification: CE, RoHS
Operational conditions
- Operating temperature (T-T): -40 - 70 °C
Weight & dimensions
- Diameter: 60 cm
- Weight: 6.5 kg
Packaging content
- Quantity per pack: 1 pc(s)
