DAN5832

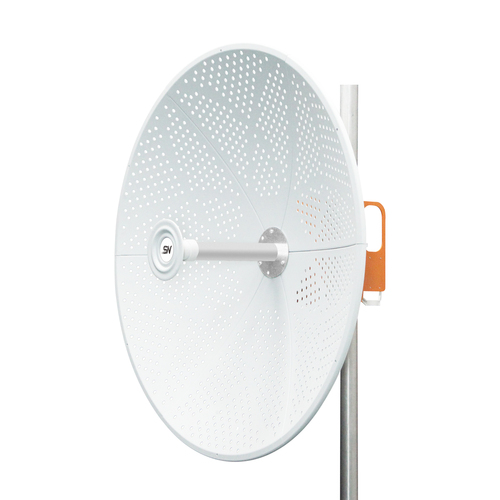

The SIL DAN5832 is an outdoor dish antenna featuring a narrow 3.5-degree beam width.
The SIL DAN5832 is an outdoor dish antenna featuring a narrow 3.5-degree beam width. It operates in the 5GHz band and is compatible with Pro Range multipoint receivers, making it ideal for long-distance transmission. This antenna comes with 2 x N-type female connectors. For connection to the SIL-BASE, LMR400 cables are necessary. SilverNet offers these cables in lengths of 1, 2, 4, and 8 metres.
Performance
- Frequency band: 4.9 - 7.1 GHz
- Impedance: 50 Ω
- Horizontal beam width: 3.5°
- Vertical beam width: 3.5°
- Antenna gain level (max): 32 dBi
Features
- Antenna type: Parabolic antenna
- Antenna connector type: 2x N-type
- Polarization: Dual polarization
- Voltage Standing Wave Ratio (VSWR): <2.0
- Product colour: White
- Survival wind speed: 200 km/h
- Mounting: Wall/Pole
- Purpose: Outdoor
- Front to back ratio: 40 dB
Certificates
- Compliance certificates: RoHS, CE
- Certification: CE, RoHS
Operational conditions
- Operating temperature (T-T): -40 - 70 °C
Weight & dimensions
- Diameter: 90 cm
- Weight: 8.5 kg
Packaging content
- Quantity per pack: 1 pc(s)
