Desktop PSU for Switch

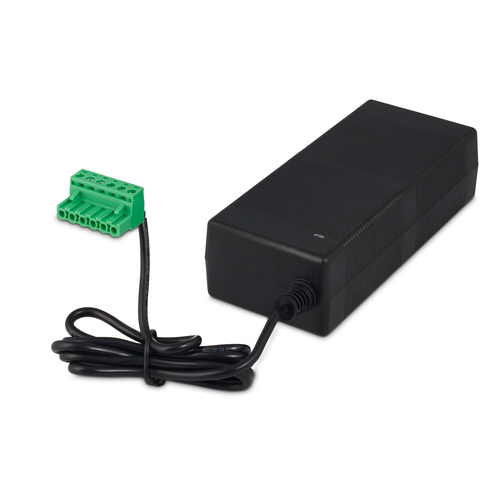

The SIL 52 PSU SW4 is a 120W 2.3A desktop Power Supply Unit for Series 7 Switch Range.
The SIL 52 PSU SW4 is a 120W 2.3A desktop Power Supply Unit for Series 7 Switch Range.
Features
- Product type: Power supply
- Product colour: Black
- Power protection features: Over current, Over voltage, Short circuit
Network
- Compliance industry standards: IEC-61000-4-5 Level 3, IEC-61000-4-4 / 1995 3, (EN 55024:1998+A1:2001+A2:2003,EN 61000-4-2), (EN 55024:1998+A1:2001+A2:2003,EN 61000-4-2) FCC part 15 : Class B for radiated and conducted emissions. EN55032：2015 , Class B for radiated and conducted emissions. GB9254-2008,GB17625.1-2012
Power
- Total power: 120 W
- AC input voltage: 100 - 240 V
- AC input frequency: 47 63 Hz
- Maximum current: 2.3 A
- Inrush current: 60 A
- DC output voltage: 52 V
- Voltage tolerance: 3%
- Ripple & noise: 300 mVpp
- Power requirements: 48V DC
Certificates
- Certification: CE, UL62368, EN62368, GB4943, GB8898, EN60950
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 80 °C
Operational conditions
- Operating relative humidity (H-H): 20 - 90%
- Storage relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 68.4 mm
- Depth: 161 mm
- Height: 32.5 mm
- Weight: 458 g
Packaging content
- Packaging content: 1 x 52W PSU and 1 x UK power lead
