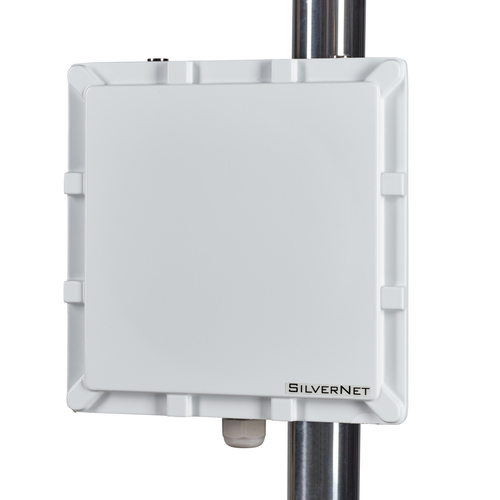

BASE500 G4
The SIL BASE 500 is a Multipoint receiver with 2 external antenna connectors.
The SIL BASE 500 is a Multipoint receiver with 2 external antenna connectors. It can be used in a multipoint system or as a long range Point to Point link. The SIL BASE 500 is capable of up to 500Mbps up to 5km (depending on which external antenna is fitted). When fitted with a Dual polarised Omni or Sector antenna the SIL BASE 500 can be used as a Multipoint receiver, receiving signals from multiple clients at the same time. The SIL BASE 500 can also be used as a long range Backhaul link when fitted with Dish or Grid antennas. Please see our Antenna Datasheet for available antennas.
Data transmission
- Maximum data transfer rate: 500 Mbit/s
- Supported data transfer rates: 95, 240, 500Mbps
Antenna
- Antenna design: External
- Antenna connector type: N-type
- Antennas quantity: 1
Wireless LAN features
- Wi-Fi band: Single-band (5 GHz)
- Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
- WLAN data transfer rate (max): 867 Mbit/s
- Frequency band: 5.1 - 5.8 GHz
- Modulation: 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
- Receiver sensitivity: -82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps
- Output power (dBm): 26
- Indoor range: 5.1GHz - 5.7Ghz
- Outdoor range: 5.4GHz - 5.8GHz
Network
- Ethernet LAN interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Networking standards: IEEE 802.11i, IEEE 802.1Q, IEEE 802.1x
- Cabling technology: 10/100/1000Base-T(X)
Ports & interfaces
- Connectivity technology: Wired & Wireless
- Ethernet LAN (RJ-45) ports: 1
Security
- Security algorithms: 256-bit AES, SNMPv2
- Security features: 802.1x, 802.11i, 802.1Q
- Authentication method: WPA2 AES
Management features
- Management platform: SNMP V2
Features
- Product type: Network bridge
- Product colour: White
- LED indicators: LAN, Signal strength
- International Protection (IP) code: IP67
Features
- Mean time between failures (MTBF): 60000 h
Power
- Power source type: DC, PoE
- AC input voltage: 100 - 240 V
- Power supply: 15.4 W
- DC input voltage: 24 - 48 V
- Power consumption (typical): 6 W
- Power consumption (max): 16 W
- Power over Ethernet (PoE) voltage: 48 V
- Power plug type: Type G
Operational conditions
- Operating temperature (T-T): -20 - 70 °C
- Operating temperature (T-T): -4 - 158 °F
- Operating relative humidity (H-H): 0 - 95%
- Storage temperature (T-T): -40 - 90 °C
- Storage relative humidity (H-H): 0 - 95%
Certificates
- Certification: CE, FCC
Weight & dimensions
- Width: 220 mm
- Depth: 75 mm
- Height: 220 mm
- Weight: 1.6 kg
Packaging content
- Packaging content: Includes 1 x radio, 1 x PoE injector PSU and 1 x Tilt and Swivel 3 Axis mounting bracket.
