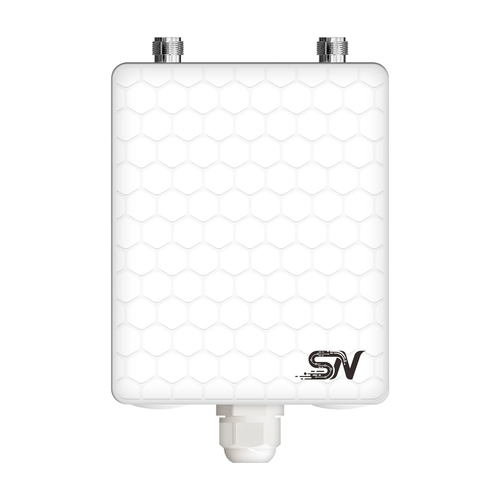

BASE G5

The SIL-BASE Gen 5 is a powerful, flexible wireless access point designed for high-performance Point-to-Multipoint (PtMP) networks. Delivering full-duplex throughput of up to 2.5 Gbps of usable bandwidth in each direction, it provides exceptional capacity for wide-area distribution networks, business campuses, industrial sites, CCTV backbones, and ISP-grade deployments. Operating across a broad 5.125-6.425 GHz frequency range, the SIL-BASE offers excellent channel flexibility and resilience in both low-noise and high-density environments. As the central access point in a multipoint system, it is designed to be paired with Omni or Sector antennas to deliver either 360-degree coverage or focused long-range sectorised distribution. Connectivity is comprehensive and installer-friendly, featuring 1 × RJ45, 1 × SFP+, and 1 × DC input (9-56 V), ensuring seamless integration into a wide range of network and power infrastructures. The SIL-BASE also includes AES+ 256 SAE encryption, WEB-based management, and PoE, making installation secure, efficient, and straightforward. Advanced radio features such as TDMA, a built-in spectrum analyser, and an integrated throughput tester ensure stable, predictable performance even in busy multipoint environments. When paired with SIL-LITE or SIL-MICRO client radios, the SIL-BASE forms the core of a robust, scalable, and high-capacity PRO G5 multipoint system. The PRO BASE Gen 5 is designed to work seamlessly with SilverNet’s range of high-performance external antennas. Using standard antenna cables, the unit can be paired with: - Dish antennas for ultra-long-range, high-capacity Point-to-Point links - Grid antennas for long-distance rural or industrial connectivity - Sector antennas for wide-area Point-to-Multipoint coverage - Omni antennas for 360-degree access in campus, urban, or public-space deployments This flexibility allows the SIL-BASE Gen 5 to be tailored precisely to the environment, from long-range backhaul links to multi-client distribution networks. As part of the SilverNet PRO G5 Range, the SIL-BASE is engineered to replace costly leased lines with a reliable, high-performance wireless alternative. When used with SilverView, SilverNet’s FREE network monitoring and management software, the SIL-BASE becomes a powerful, easy-to-manage access point that simplifies deployment, monitoring, and long-term maintenance. The SIL-BASE Gen 5 includes a 2-year parts and labour warranty, extendable to 5 years for enhanced long-term protection.

Data transmission

• Maximum data transfer rate: 2500 Mbit/s
• Maximum transfer distance: 5000 m

Antenna

• Antenna design: External
• Antenna connector type: N-type

Wireless LAN features

• Wi-Fi band: Single-band (5 GHz)
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• WLAN data transfer rate (max): 2500 Mbit/s
• Frequency band: 5.150 - 6.425 GHz
• Output power (dBm): 26
• Outdoor range: 5000

Network

• Ethernet LAN interface type: 2.5 Gigabit Ethernet
• Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11be, IEEE 802.11n

Ports & interfaces

• Ethernet LAN (RJ-45) ports: 1
• Power over Ethernet plus (PoE+) ports quantity: 1

Security

• Security algorithms: 256-bit AES, SNMPv2, SNMPv3, SSH

Features

• Product type: Network bridge
• Mounting type: Wall/Pole
• Product colour: White
• LED indicators: LAN, Power, Signal strength

Features

• International Protection (IP) code: IP67
• Mean time between failures (MTBF): 60000 h

Power

• Power source type: DC, PoE
• AC input voltage: 100-240 V
• Power supply: 15.4 W
• DC input voltage: 9-56 V
• Power consumption (typical): 6 W
• Power consumption (max): 16 W
• Power over Ethernet (PoE) voltage: 48 V
• Power plug type: Type G

Operational conditions

• Operating temperature (T-T): -20 - 60 °C
• Operating relative humidity (H-H): 0 - 95%
• Storage temperature (T-T): -40 - 80 °C

Certificates

• Certification: CE, FCC

Weight & dimensions

• Width: 140 mm
• Depth: 52 mm
• Height: 170 mm
• Weight: 790 g

Other features

• Warranty period: 2 year(s)
