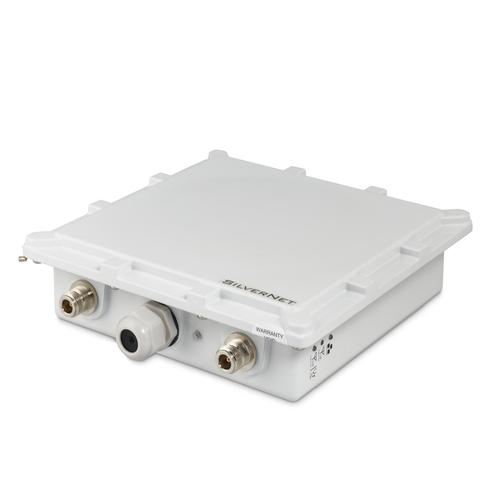

AP1200 G3/4
The ACCESS 1200 Dual AP is a highly secure Dual Frequency Wi-Fi access point.
The ACCESS 1200 Dual AP is a highly secure Dual Frequency Wi-Fi access point. Enhanced features, including, MIMO spatial multiplexing, ultrafast radio speed, gives the ACCESS 1200 Dual AP unparalleled data throughput capabilities of up to 240Mbps Duplex on 802.11n 2.4GHz and up to 500Mbps Duplex on 802.11ac 5GHz frequencies simultaneously. The ACCESS 1200 Dual AP can create multiple AP cells, which increases the number of devices able to connect per node and can achieve radio speeds up to 300Mbps and 867Mbps giving a potential bandwidth of 1167Mbps. It is fully integrateable with existing or new network installations were stable long range Wi-Fi is required for connecting laptops, tablets or handheld devices. Supports Bridging, MESHING, Roaming, PoE and comes with our FREE SilverView Controller Software.
Features
- Maximum data transfer rate: 1167 Mbit/s
- Maximum data transfer rate (2.4 GHz): 300 Mbit/s
- Maximum data transfer rate (5 GHz): 867 Mbit/s
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Frequency band: 2.412-2.472, 5.1-5.8 GHz
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af
- Cabling technology: 10/100/1000Base-T(X)
- MIMO type: Multi User MIMO
- Modulation: 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
- WLAN channel features: WLAN channel management
- Virtual LAN features: IP subnet-based VLAN, Port-based VLAN, Tagged VLAN
- Number of VLAN IDs: 4095
- Transmitting power: 26 dBmW
- Receiver sensitivity: -82dBm@54Mbps, -74dBm@300Mbps, -72dBm@867Mbps, -68dBm@1.3Gbps
Security
- Security algorithms: 256-bit AES, SNMP, SNMPv2, SSH
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- Internal RJ-45 ports quantity: 2
Power
- AC input voltage: 100 - 240 V
- Output voltage: 24-48, 48-56 V
- Power consumption (typical): 6 W
- Power consumption (max): 16 W
Power
- Power supply: 15.4 W
- Power plug type: Type G
Design
- Placement: Pole
- Product colour: White
- International Protection (IP) code: IP67
- LED indicators: LAN, Signal strength
- Cable length: 100 m
Antenna
- Antenna type: External
- Antennas quantity: 2
- Antenna connector type: N-type
- Number of connectors: 4
- Polarization: Dual polarization
Performance
- Compatible operating systems: Microsoft Windows, Mac OS, Linux Distributions
- Minimum system requirements: Internet Explorer, Google Chrome, Mozilla Firefox
Certificates
- Certification: CE, FCC
Weight & dimensions
- Width: 220 mm
- Depth: 220 mm
- Height: 75 mm
- Weight: 1.6 kg
Packaging content
- Quantity per pack: 1 pc(s)
- Packaging content: Includes 1 x radio, 1 x PoE injector PSU and 1 x Tilt and Swivel 3 Axis mounting bracket.
- Bundled software: SilverView Pro Network Management & Monitoring Software
Operational conditions
- Operating relative humidity (H-H): 0 - 95%
- Operating temperature (T-T): -20 - 70 °C
- Storage temperature (T-T): -40 - 90 °C
