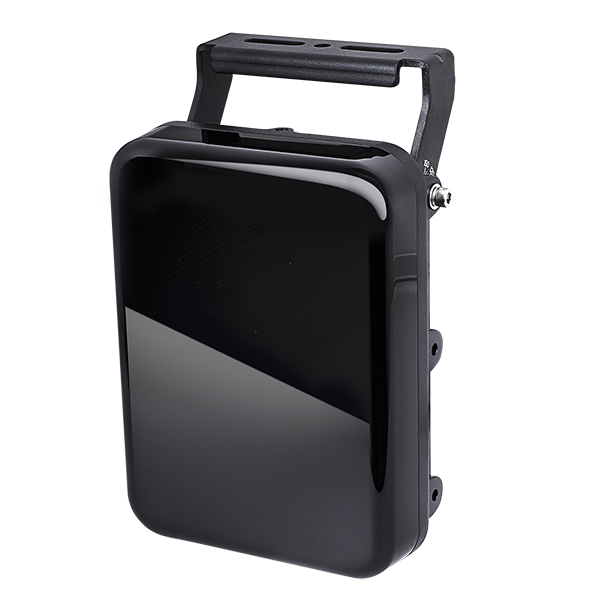

CM80 Series
The Vivotek CM80 Series is an outdoor IR illuminator range with beam angles from 10 to 120 degrees and an IP68, IK10-rated housing.
The CM80 Series is a Vivotek illuminator.
- Models: CM80I8-1040; CM80I8-2040; CM80I8-4080; CM80I8-90120
- Beam Angle (Horizontal): CM80I8-1040: 10° ~ 40°; CM80I8-2040: 20° ~ 40°; CM80I8-4080: 40° ~ 80°; CM80I8-90120: 90° ~ 120°
- Distance: CM80I8-1040: 140 ~ 350 m (459 ~ 1148 ft); CM80I8-2040: 170 ~ 280 m (557 ~ 918 ft); CM80I8-4080: 80 ~ 120 m (262 ~ 393 ft); CM80I8-90120: 60 ~70 m (196 ~ 229 ft)
- Beam Pattern: CM80I8-1040: Circular; CM80I8-2040: Elliptical; CM80I8-4080: Elliptical; CM80I8-90120: Rectangular
- LED Array: 24 pcs LED
- Wavelength: 850 nm
- External Input: IR ON/OFF control
- External Output: Day/Night switching
- Automatic IR On/Off: Controlled by Light Sensor
- Light Sensor Sensitivity: 1/5/10/30(default)/50/100% (Max. 1000 Lux) (accessed via CaMate remote/RS-485 control)
- Adjustable IR Power: 20%-100% (accessed via CaMate remote/RS-485 control)
- Power Input: 24VDC ±10%, 24V AC(50/60Hz) ±10%
- Power Consumption: Max. 90 W
- Operating Temperature: -40 °C ~ +50°C (-40 °F ~ +122 °F)
- Working Temperature: -50 °C ~ +50 °C (-58 °F ~ +122 °F)
- Dimensions: 220 x 160 x 73 mm (8.6 × 6.3 × 2.9 inch)
- Weight: 2.1 kg
- Cable Length: 0.75 m (2.46 ft) UL AWM
- Casing: IP68, IK10
- Safety Certifications: IEC 62471, EN 50130-4, CE; EN61000-6-3, EN60598-1, EN60598-2-5, FCC Class A, EN60529
- Humidity: 90%
- 940nm: CM80I8-1040 => CM80I9-1040; CM80I8-2040 => CM80I9-2040; CM80I8-4080 => CM80I9-4080; CM80I8-90120 => CM80I9-90120
- white LED 5000K: CM80I8-1040 => CM80W5-1040; CM80I8-2040 => CM80W5-2040; CM80I8-4080 => CM80W5-4080; CM80I8-90120 => CM80W5-90120
- Bracket: U-Type Bracket (134 × 34 × 81.5 mm)
- Bracket: AM-219: L-Bracket for Dual CaMate Illuminators; CMA-B01: L-Bracket for Single CaMate Illuminator; CMA-B03: U-Type Bracket for Single CaMate Illuminator
- Mounting Kit: CMA-B04: Wall-Mount Kit for Single/Dual CaMate Illuminator; CMA-B05: Wall-Mount Kit for Dual/Triple CaMate Illuminator; CMA-B06: Wall-Mount Kit for Dual/Triple CaMate Illuminator
- Alignment Kit: CMA-A01: Laser Alignment Kit
- Remote Controller: CMA-E01
- Power Supply: HLG-120H-24: 120W Single Output Switching Power Supply
