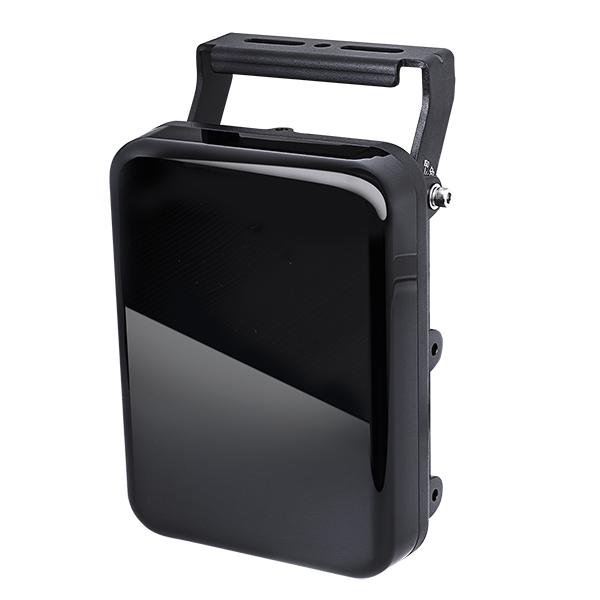

CM48 Series
The Vivotek CM48 Series is a compact IR illuminator range with beam angles from 10 to 180 degrees, effective up to 250m.
The CM48 Series is a Vivotek illuminator.
- Models: CM48I8-1040; CM48I8-2040; CM48I8-4080; CM48I8-90120; CM48I8-180
- Beam Angle (Horizontal): CM48I8-1040: 10° ~ 40°; CM48I8-2040: 20° ~ 40°; CM48I8-4080: 40° ~ 80°; CM48I8-90120: 90° ~ 120°; CM48I8-180: 180°
- Distance: CM48I8-1040: 100 ~250 m (328 ~820 ft); CM48I8-2040: 120 ~ 200 m (394 ~ 656 ft); CM48I8-4080: 60 ~ 90 m (197 ~ 295 ft); CM48I8-90120: 45 ~ 55 m (148 ~ 180 ft); CM48I8-180: 40 m (131 ft)
- Beam Pattern: CM48I8-1040: Circular; CM48I8-2040: Elliptical; CM48I8-4080: Elliptical; CM48I8-90120: Rectangular; CM48I8-180: Rectangular
- LED Array: 24 pcs LED
- Wavelength: 850 nm
- External Input: IR ON/OFF control
- External Output: Day/Night switching
- Automatic IR On/Off: Controlled by Light Sensor
- Light Sensor Sensitivity: 1/5/10/30(default)/50/100 Lux (accessed via CaMate remote/RS-485 control)
- Adjustable IR Power: 20%-100% (accessed via CaMate remote/RS-485 control)
- Power Input: 12~24V DC ±10%, 24V AC(50/60Hz) ±10% (14.5VDC current controlled)
- Power Consumption: Max. 48 W
- Operating Temperature: -40°C ~ +60°C (-40°F ~ +140°F)
- Working Temperature: -50°C ~ +60°C (-58°F ~ +140°F)
- Dimensions: 220 x 160 x 73 mm (8.6 × 6.3 × 2.9 inch)
- Weight: 2.1 kg
- Cable Length: 0.75 m (2.46 ft) UL AWM
- Casing: IP68, IK10
- Safety Certifications: IEC 62471, EN 50130-4, CE; EN61000-6-3, EN60598-1, EN60598-2-5, FCC Class B, EN60529
- Humidity: 90%
- 940nm: CM48I8-1040 => CM48I9-1040; CM48I8-2040 => CM48I9-2040; CM48I8-4080 => CM48I9-4080; CM48I8-90120 => CM48I9-90120
- white LED 5000K: CM48I8-1040 => CM48W5-1040; CM48I8-2040 => CM48W5-2040; CM48I8-4080 => CM48W5-4080; CM48I8-90120 => CM48W5-90120
- Bracket: U-Type Bracket (134 × 34 × 81.5 mm)
- Bracket: AM-219: L-Bracket for Dual CaMate Illuminators; CMA-B01: L-Bracket for Single CaMate Illuminator; CMA-B03: U-Type Bracket for Single CaMate Illuminator
- Mounting Kit: CMA-B04: Wall-Mount Kit for Single/Dual CaMate Illuminator; CMA-B05: Wall-Mount Kit for Dual/Triple CaMate Illuminator; CMA-B06: Wall-Mount Kit for Dual/Triple CaMate Illuminator
- Alignment Kit: CMA-A01: Laser Alignment Kit
- Remote Controller: CMA-E01
- Power Supply: HLG-60H-24: 60W Single Output Switching Power Supply
