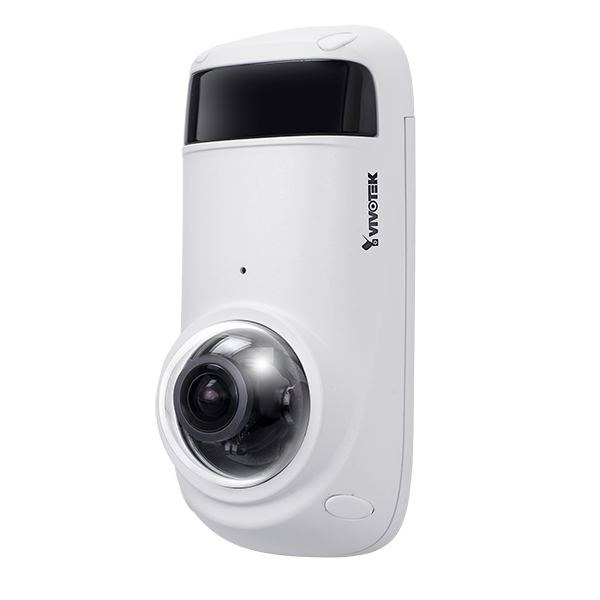

CC9381-HV
The CC9381-HV is a 5MP IR compact panoramic network camera with f = 1.45 mm.
The CC9381-HV covers a wide field of view from a single vantage point at 5MP resolution, cutting down the number of cameras needed to monitor an open area. The CC9381-HV also has built-in 180° IR illuminators up to 15 metres.
- Max. Resolution: 2560x1920 (5MP)
- Lens: Fixed-focal, f = 1.45 mm
- WDR Technology: WDR Pro
- Illuminators: Built-in IR illuminators up to 15 metres with Smart IR
- Ingress Rating: IK10, IP66
- Compression: H.265, H.264, MJPEG
- Frame Rate: H.265: 20 fps @ 2560x1920 (WDR Pro on); 30 fps @ 2560x1920 (WDR Pro off); 20 fps @ 2560x1920 (WDR Pro on); 25 fps @ 2560x1920 (WDR Pro off); 20 fps @ 2560x1920 (WDR Pro on); 20 fps @ 2560x1920 (WDR Pro off)
- ONVIF: Profile G, S, T supported, specification available at www.onvif.org
- Audio: One-way Audio
- Storage: Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)
- Motion Detection: Five-window video motion detection
