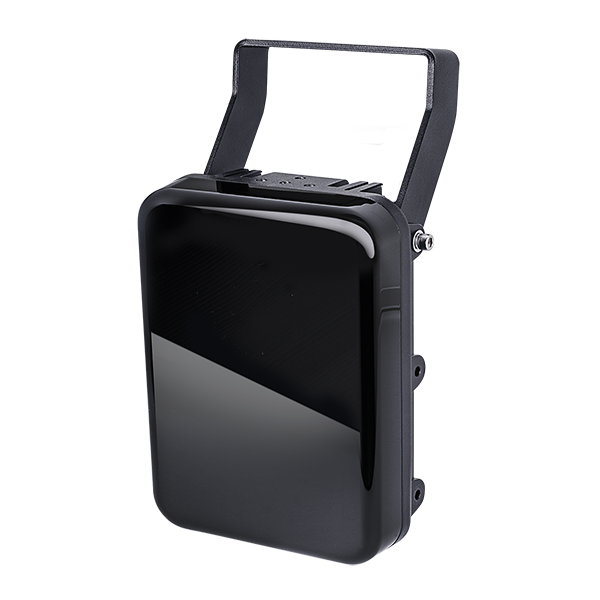

CA80 Series
The Vivotek CA80 Series is a compact IR illuminator range with 10-40 degree beam angles and up to 350m effective distance.
The CA80 Series is a Vivotek illuminator.
- Models: CA80I8-1040; CA80I8-2040
- Beam Angle (Horizontal): CA80I8-1040: 10° ~ 40°; CA80I8-2040: 20° ~ 40°
- Distance: CA80I8-1040: 140 ~ 350 m (459 ~ 1148 ft); CA80I8-2040: 170 ~ 280 m (557 ~ 918 ft)
- Beam Pattern: CA80I8-1040: Circular; CA80I8-2040: Elliptical
- LED Array: 24 pcs LED
- Wavelength: 850 nm
- External Input: IR ON/OFF control
- External Output: Day/Night switching
- Automatic IR On/Off: Controlled by Light Sensor
- Light Sensor Sensitivity: 1/5/10/30(default)/50/100% (Max. 1000 Lux) (accessed via CaMate remote/RS-485 control)
- Adjustable IR Power: 20%-100% (accessed via CaMate remote/RS-485 control)
- Power Input: 24VDC ±10%, 24V AC(50/60Hz) ±10%
- Power Consumption: Max. 90 W
- Operating Temperature: -40 °C ~ +50°C (-40 °F ~ +122 °F)
- Working Temperature: -50 °C ~ +50 °C (-58 °F ~ +122 °F)
- Dimensions: 220 x 160 x 73 mm (8.6 × 6.3 × 2.9 inch)
- Weight: 2.1 kg
- Cable Length: 0.75 m (2.46 ft) UL AWM
- Casing: IP68, IK10
- Safety Certifications: IEC 62471, EN 50130-4, CE; EN61000-6-3, EN60598-1, EN60598-2-5, FCC Class A, EN60529
- Humidity: 90%
- Bracket: U-Type Bracket (134 × 34 × 81.5 mm)
- Bracket: AM-219: L-Bracket for Dual CaMate Illuminators; CMA-B01: L-Bracket for Single CaMate Illuminator; CMA-B03: U-Type Bracket for Single CaMate Illuminator
- Mounting Kit: CMA-B04: Wall-Mount Kit for Single/Dual CaMate Illuminator; CMA-B05: Wall-Mount Kit for Dual/Triple CaMate Illuminator; CMA-B06: Wall-Mount Kit for Dual/Triple CaMate Illuminator
- Alignment Kit: CMA-A01: Laser Alignment Kit
- Remote Controller: CMA-E01
- Power Supply: HLG-120H-24: 120W Single Output Switching Power Supply
