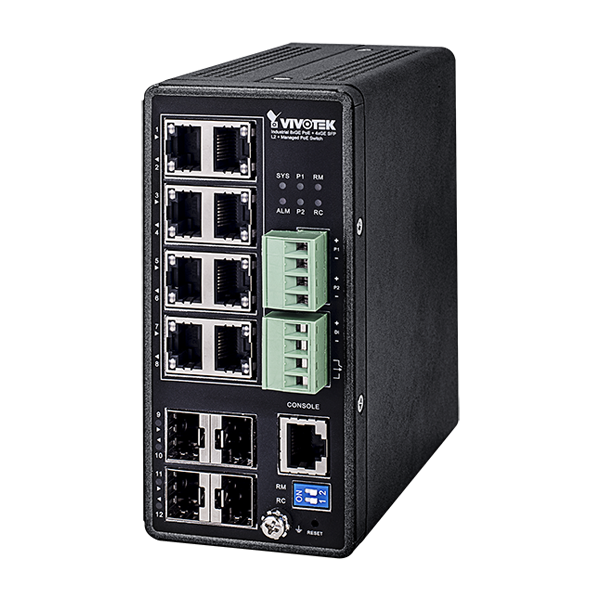

AW-IHT-1271
The AW-IHT-1271 is a 12 ports VIVOCAM L2+ managed PoE switch with 240W.
The AW-IHT-1271 is a 12-port L2 managed PoE switch with a 240W PoE power budget. 6KV surge protection guards the connected equipment, and rated for extended-temperature operation down to -40°C.
- Segment: L2 Managed PoE Switch
- Product Description: Industrial 8xGbE PoE + 4xGbE SFP L2 Managed Switch
- PoE Port Ethernet: 8xGbE PoE
- Uplink Port Ethernet: 4xGbE SFP
- Total Ports: 12
- Console port: 1xRJ45
- PoE Port: 8
- Max. PoE Output Power: 30W
- PoE Power Budget: 240W
- PoE Standard: 802.3 af/at
- PoE Pin Assignment: 1/2 (+), 3/6 (-)
- Surge Protection: 6KV
- Switching Bandwidth: 24 Gbps
- Buffer Memory: 4.1Mb
- Forwarding Rate: 17.856 Mpps
- MAC Address: 8K
- Jumbo Frames: 9600 Bytes
- Max. Power Consumption: 250W
- Auto Search VIVOTEK Device: up to 1024 pcs
- 802.1Q Tag-based VLAN: 4096 VLAN IDs
- Hardware Queues: 8
- Operating Temperature: -40°C ~ 75°C (-40°F ~ 167°F)
- Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F)
- Operating Humidity: 5% ~ 90% Non-Condensing
- Dimensions: 62(W) x 135(H) x 130(D) mm
- Weight: 0.68 kg
- Power Input: PW1: 48 ~ 57VDC; PW2: 48 ~ 57VDC
- Types: CE, FCC, LVD, VCCI
