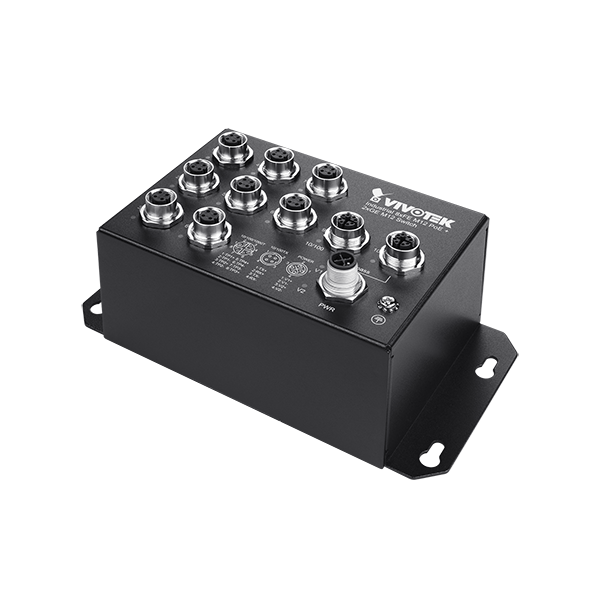

AW-IHT-1002
The AW-IHT-1002 is an EN50155 8xFE M12 PoE + 2xGbE M12 switch with 165W@24VDC, 190W@48VDC.
The AW-IHT-1002 is a 10-port M12 EN50155 unmanaged PoE switch with a 165W@24VDC, 190W@48VDC PoE power budget. 2KV surge protection guards the connected equipment, and rated for extended-temperature operation down to -40°C.
- Segment: M12 EN50155 Unmanaged PoE Switch
- Product Description: 8xM12 D-Coded PoE + 2xM12 X-Coded Switch
- PoE Port Ethernet: 8xM12 D-Coded
- Uplink Port Ethernet: 2xM12 X-Coded
- Total Ports: 10
- PoE Port: 8
- Max. PoE Output Power: 30W
- PoE Power Budget: 165W@24VDC, 190W@48VDC
- PoE Standard: 802.3 af/at
- PoE Pin Assignment: 1/2 (+), 3/6 (-)
- Surge Protection: 2KV
- Switching Bandwidth: 5.6 Gbps
- Buffer Memory: 1.5Mb
- Forwarding Rate: 4.1664 Mpps
- MAC Address: 16K
- Jumbo Frames: 9216 Bytes
- Max. Power Consumption: 200W
- Operating Temperature: -40°C ~ 75°C (-40°F ~ 167°F)
- Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F)
- Operating Humidity: 5% ~ 90% Non-Condensing
- Waterproof: IP40
- Dimensions: 181 (L) x 99 (W) x 94 (H) mm
- Weight: 1.2 kg
- Power Input: PW1: 24/48VDC; PW2: 24/48VDC; Redundant Power Backup
- Types: CE, FCC, EN50155, EN45545-2
