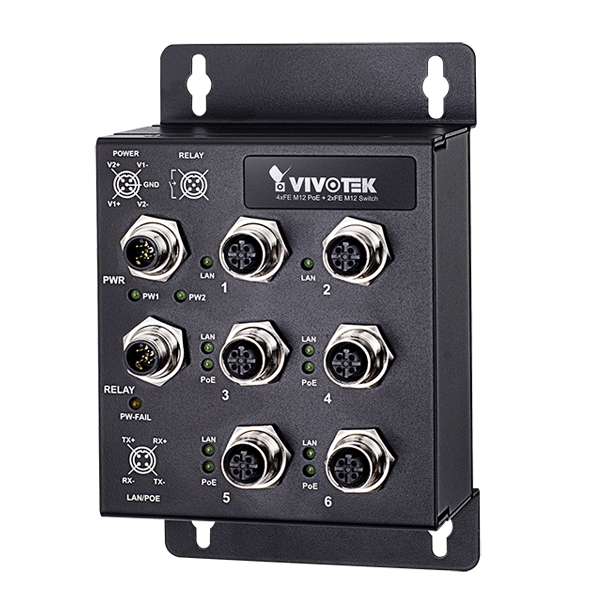

AW-IHT-0602
The AW-IHT-0602 is an EN50155 4xFE M12 PoE + 2xFE M12 switch with 120W.
The AW-IHT-0602 pairs 6 switched ports with a 120W PoE power budget in an M12 EN50155 unmanaged PoE switch chassis. 2KV surge protection guards the connected equipment, and rated for extended-temperature operation down to -40°C.
- Segment: M12 EN50155 Unmanaged PoE Switch
- Product Description: 4xM12 D-Coded PoE + 2xM12 D-Coded Switch
- PoE Port Ethernet: 6xM12 D-Codoed
- Uplink Port Ethernet: 2xM12 D-Coded
- Total Ports: 6
- PoE Port: 4
- Max. PoE Output Power: 30W
- PoE Power Budget: 120W
- PoE Standard: 802.3 af/at
- PoE Pin Assignment: 1/2 (+), 3/6 (-)
- Surge Protection: 2KV
- Switching Bandwidth: 1.2 Gbps
- Buffer Memory: 1Mb
- Forwarding Rate: 0.8928 Mpps
- MAC Address: 4K
- Jumbo Frames: 9216 Bytes
- Max. Power Consumption: 130W
- Operating Temperature: -40°C ~ 75°C (-40°F ~ 167°F)
- Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F)
- Operating Humidity: 5% ~ 90% Non-Condensing
- Dimensions: 100 (L) x 163 (W) x 56.2 (H) mm
- Weight: 0.85 kg
- Power Input: PW1: 24 ~ 56VDC; PW2: 24 ~ 56VDC; Redundant Power Backup
- Types: CE, FCC, EN50155
