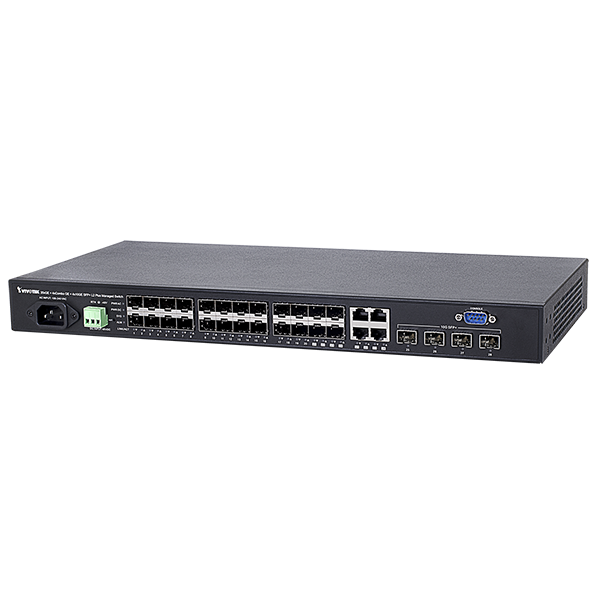

AW-GTS-287A
The AW-GTS-287A is a 28 ports VIVOCAM L2+ managed switch.
The AW-GTS-287A is a 28-port 10G L2+ managed switch.
- Segment: 10G L2+ Managed Switch
- Product Description: 20xGE SFP + 4xCombo GE + 4x10G SFP+ Layer 2 Plus Managed Switch
- Port Ethernet: 20xGbE SFP
- Uplink Port Ethernet: 4xGbE Combo + 4x10G SFP
- 10G SFP+ Port: 4
- Total Ports: 28
- Console port: 1xRS232
- Switching Bandwidth: 128 Gbps
- Buffer Memory: 32Mb
- Forwarding Rate: 95.232 Mpps
- MAC Address: 32k
- Jumbo Frames: 10056 Kytes
- Max. Power Consumption: 30W
- Auto Search VIVOTEK Device: UP to 1024 pcs
- 802.1Q Tag-based VLAN: 4096 VLAN IDs
- Hardware Queues: 8
- Operating Temperature: -20°C ~ 60°C (-4°F ~ 140°F)
- Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F)
- Operating Humidity: 10 ~ 90% RH
- Dimensions: 44 (H) x 442 (W) x 211 (D) mm
- Weight: 3.1 kg
- Power Input: 100 ~ 240V AC / 24 ~ 72V DC
- Frequency: 50 ~ 60 Hz
- Types: CE, FCC, LVD, VCCI
