AW-GEV-288A-370

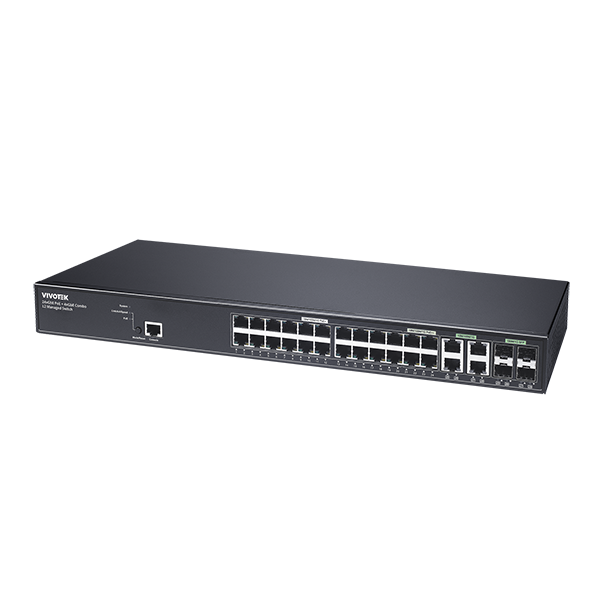

The AW-GEV-288A-370 is a 28 ports VIVOCAM L2 managed PoE switch with 370W.
The AW-GEV-288A-370 is a 28-port L2 managed PoE switch with a 370W PoE power budget. 6KV surge protection guards the connected equipment.
- Segment: L2 Managed PoE Switch
- Product Description: 4xGbE bt 90W PoE + 20xGbE PoE + 4xGbE Combo VivoCam L2 Managed PoE Switch
- PoE Port Ethernet: 24xGbE PoE
- Uplink Port Ethernet: 4xGbE Combo
- Total Ports: 28
- Console port: 1xRJ45
- PoE Port: 24
- Max. PoE Output Power: Port 1-20 at 30W; Port 21-24 bt 90W
- PoE Power Budget: 370W
- PoE Standard: 802.3 af/at/bt
- PoE Pin Assignment: Port 21-24 bt: 4 pairs 1/2 (+), 3/6 (-) and 4/5 (+), 7/8 (-); Port 1-20 af/at: 2 pairs 1/2 (+), 3/6 (-)
- Surge Protection: 6KV
- Switching Bandwidth: 56Gbps
- Buffer Memory: 4.1Mb
- Forwarding Rate: 41.664 Mpps
- MAC Address: 8K
- Jumbo Frames: 9216 Bytes
- Max. Power Consumption: 390W
- Auto Search VIVOTEK Device: up to 256 pcs
- 802.1Q Tag-based VLAN: 4096 VLAN IDs
- Hardware Queues: 8
- Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F)
- Storage Temperature: -20°C ~ 70°C (-4°F ~ 158°F)
- Operating Humidity: 10 ~ 90% RH
- Dimensions: 442 (W) x 44 (H) x 211(D) mm
- Weight: 3.2 kg
- Power Input: 100V ~ 240V
- Frequency: 50 ~ 60 Hz
- Types: UL, CE, UKCA, FCC, VCCI, LVD, ICES
